How Much Does It Cost to Move Your HVAC Unit? A Clear Price Guide for LA & Glendale

A contractor says “just a few feet, shouldn’t cost much” — and then the invoice arrives looking a lot like a new installation. There’s a reason for that: relocating HVAC equipment almost always means full removal and reinstallation, not a simple slide across the yard. Moving an AC condenser typically costs $1,000 to $2,500, while relocating a furnace or air handler runs considerably higher, often $3,000 and up — and which category your project falls into is the single biggest factor in what you’ll actually pay.

What You’ll Pay, by Scenario

Moving an outdoor AC condenser typically costs $1,000 to $2,500, while relocating a furnace or air handler runs $3,000 or more in complex cases — a gap that comes down to what each piece of equipment is actually connected to. An AC condenser relocation is primarily a refrigerant-line job: relatively contained, localized work. A furnace or air handler relocation touches ductwork, gas lines, and electrical connections simultaneously, which is a fundamentally bigger scope of work. All three major sources on this topic agree on one point worth repeating: relocating HVAC equipment is, in terms of labor involved, essentially a new installation rather than a simple repositioning — which is exactly why the cost of moving an HVAC system rarely comes in as cheap as homeowners initially expect.

Cost to Move HVAC Equipment — By Scenario

What Actually Makes Up the Cost

Two relocation jobs that sound similar on paper — “move the AC unit” — can land at very different prices once a technician actually looks at the site.

Relocation distance determines whether the existing refrigerant line can be reused or needs full replacement. A short move sometimes allows the existing copper line set to be repositioned with minimal rework; a longer move almost always requires a new line, since copper refrigerant lines don’t bend reliably a second time without risking a crack or a slow leak at the bend point.

Space accessibility changes labor time significantly. Working in an open basement or an unfinished attic is straightforward; routing new lines or ductwork through finished walls with existing drywall means cutting, running the line, and then patching and repairing the wall — extra steps that add both time and a separate repair cost.

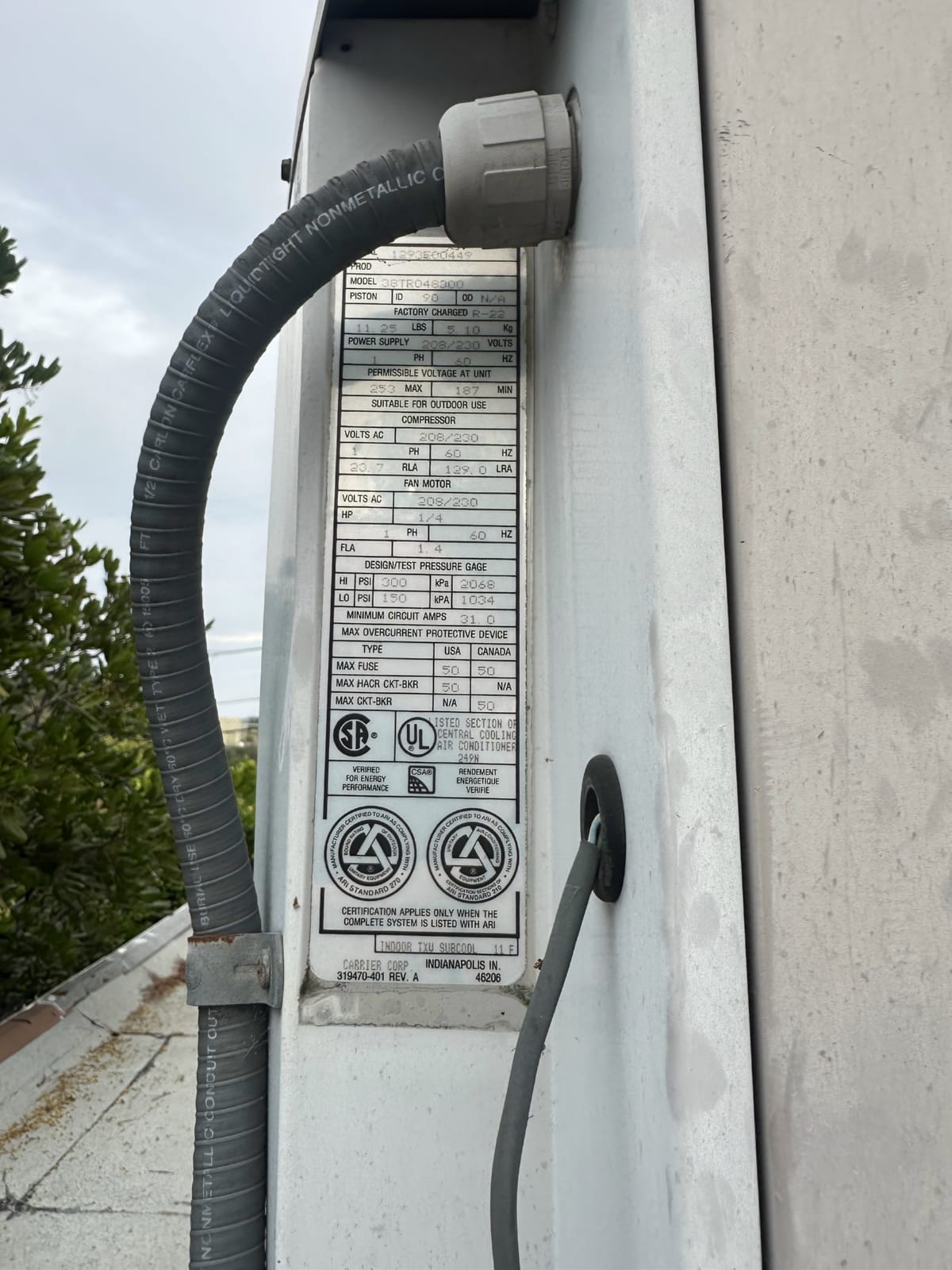

Electrical distance from the panel matters for both AC and furnace relocations. Moving equipment closer to the existing electrical panel keeps wiring costs low; moving it farther away typically requires a new junction box and additional licensed electrical work.

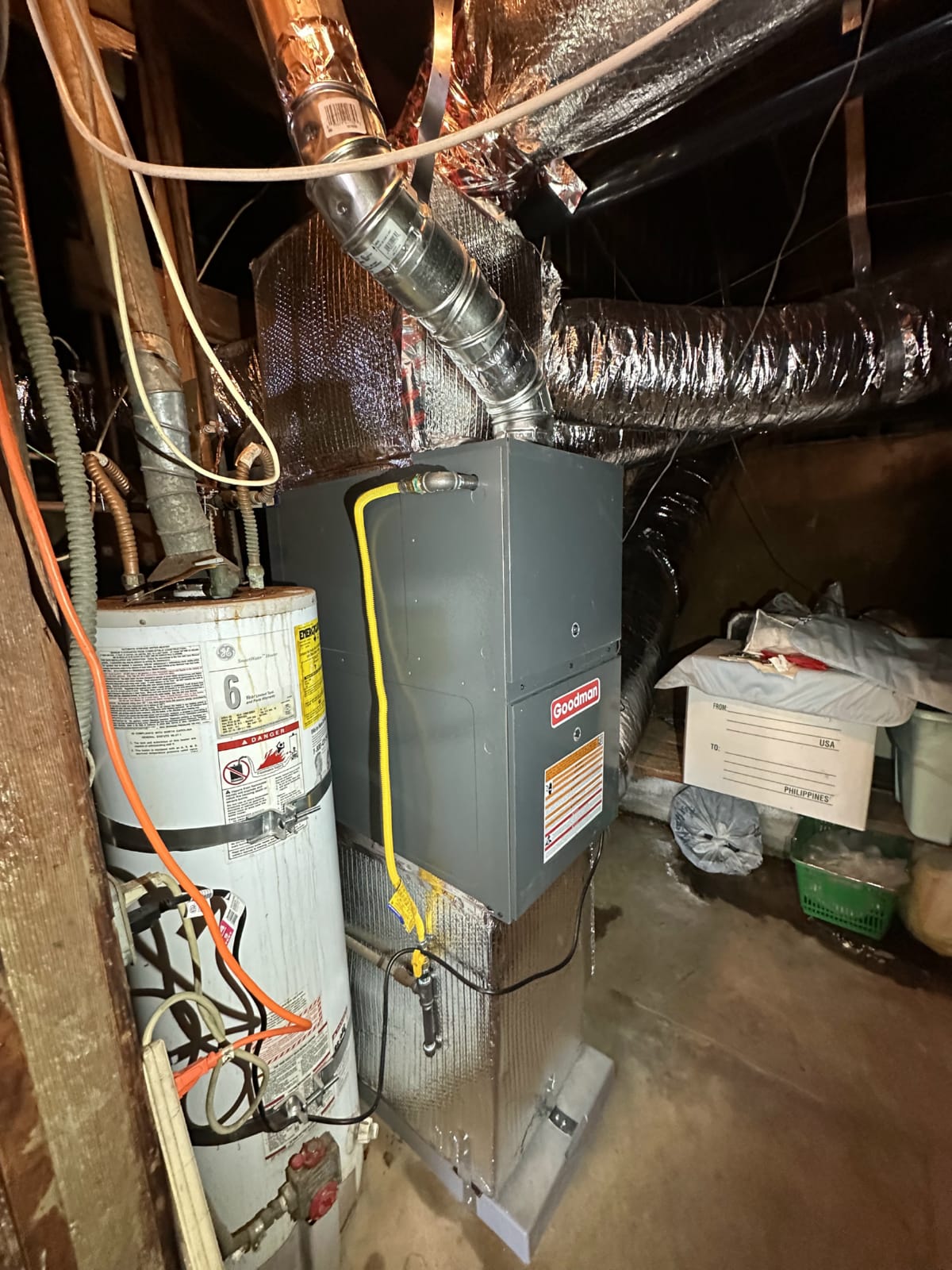

Ductwork rework is specific to furnace and air handler relocations. Moving a furnace away from the center of the house throws off the home’s air supply balance, since ductwork is generally designed around a central point for even airflow to every room — shifting that point means revising the duct layout, not just extending a line.

Permit requirements apply in many cases. Some cities, including parts of the Los Angeles area, require a mechanical permit for relocating HVAC equipment to a new position, particularly when it involves new gas or electrical connections.

5 Factors That Affect the Price of an HVAC Relocation:

• Relocation distance and whether a new refrigerant line is required
• Space accessibility (open basement/attic vs. finished walls)
• Distance from the existing electrical panel
• Whether ductwork needs to be reworked (furnace relocations)
• Whether the new location requires a city permit

What Actually Happens During a Relocation

Understanding the technical steps involved explains why “just move it a few feet” rarely translates into a quick, cheap job.

1. Refrigerant recovery — existing refrigerant is safely evacuated and recovered from the line set before anything is disconnected, as required by EPA regulations governing refrigerant handling.
2. Disconnection and removal — the old line set and equipment are disconnected and removed from the original location.
3. New pad installation and leveling — a new mounting pad or gravel base is set at the new location, and the unit is carefully leveled, since an unlevel condenser causes premature compressor wear over time.
4. New line set and electrical connection — refrigerant lines and electrical wiring are run to the new position and properly connected.
5. Recharge and leak test — the system is recharged with refrigerant and tested thoroughly for leaks at every new connection point.
6. Final commissioning — the relocated system is run through a full test cycle to confirm it’s operating to manufacturer specifications.

Skipping the leak test or cutting corners on leveling is a common source of problems after a “cheap” relocation — a system that looked fine on move-in day can develop a slow refrigerant leak or uneven compressor wear within months if those steps were rushed.

Should You Move the Old System — or Replace It Instead?

If the equipment being relocated is already old, moving it isn’t automatically the economical choice — sometimes it’s the more expensive path to the same outcome.

If your system is more than 10 to 15 years old, or still runs on R-22 refrigerant — phased out of U.S. production under EPA regulations as of 2020 — relocating it can cost nearly as much as a straight replacement, and what you end up with is the same aging equipment in a new spot. Paying for a full relocation and then facing a replacement within the next couple of years anyway often costs more in total than simply replacing the system at the new location from the start, skipping the relocation labor entirely. Before committing to a relocation quote, it’s worth asking a technician to walk through both options side by side — sometimes the math clearly favors one, and sometimes it’s close enough that other factors (budget timing, equipment availability) should decide it.

When a Mini-Split Beats Relocating the Whole System

For a major renovation — an ADU, a home addition, a significant remodel — relocating the entire central system isn’t always the most cost-effective answer, even when it’s the first option most homeowners consider.

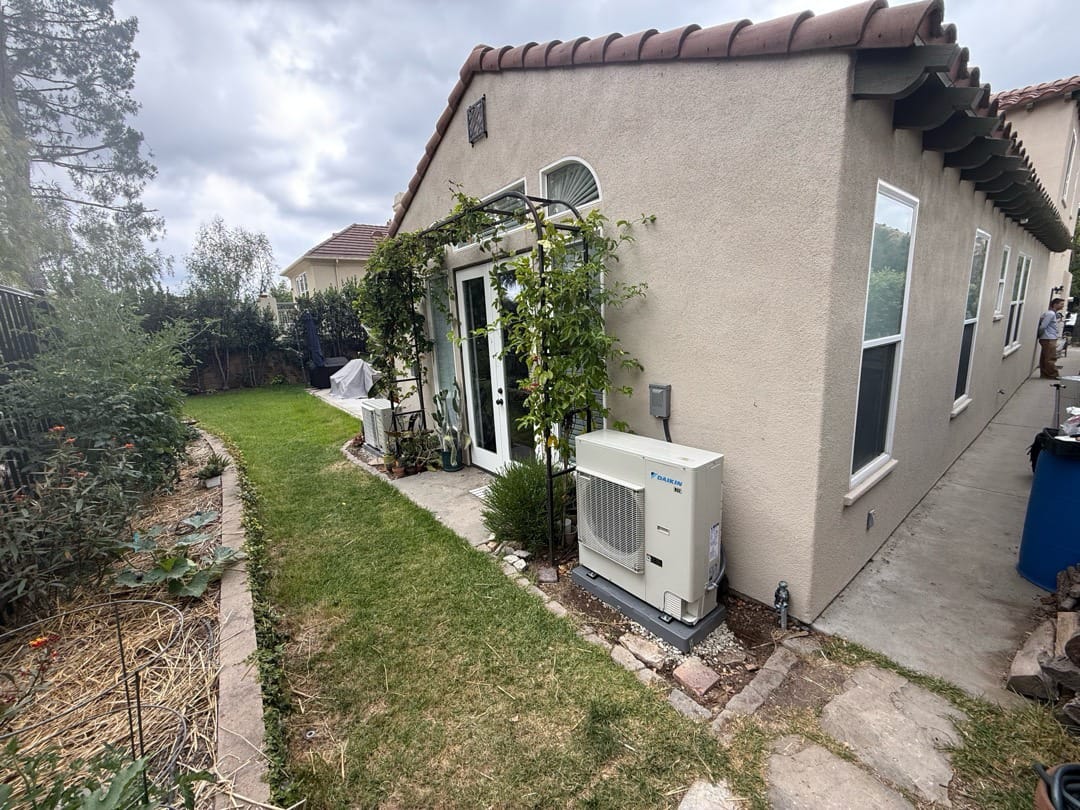

If a new zone of the house needs conditioning and the alternative is rerouting ductwork and relocating a central furnace across the property, it’s often more economical to add a standalone mini-split to that new zone instead, leaving the existing central system right where it is. A mini-split requires no ductwork at all — just a small wall penetration for the line set — which sidesteps the ductwork rework and gas line relocation costs that make furnace relocations so expensive in the first place. If relocating your central system is pricing out higher than feels reasonable for the scope of the project, our mini-split AC installation in Los Angeles team can price out a more economical solution for the new space.

Moving HVAC Equipment in Los Angeles and Glendale

National guides on this topic are mostly written around Midwest and East Coast scenarios — kitchen remodels, basement finishing projects. Los Angeles and Glendale have a driver behind HVAC relocations that barely shows up in that national content: the regional ADU construction boom.

Accessory dwelling units (ADUs) have become one of the most common home improvement projects across California in recent years, and a huge share of HVAC relocation calls in this market trace directly back to one: an existing condenser or furnace physically sits where the new structure needs to go, forcing a move that has nothing to do with the equipment itself breaking down. If you’re planning an ADU, ask early in the design process whether existing HVAC equipment will need relocating — building that into the budget upfront avoids a late-stage scramble.

There’s also a regulatory layer worth knowing before picking a new spot. Cities including Glendale and Los Angeles regulate outdoor HVAC equipment placement through setback rules — minimum distance from property lines and neighboring windows — as well as noise ordinances governing how loud equipment can run near a property boundary. Checking these requirements before finalizing the new location is worth the extra step; moving equipment twice because the first spot violated a setback or noise rule costs far more than getting it right the first time.

This applies across the communities we serve: Burbank, Glendale, Pasadena, Altadena, Arcadia, La Cañada, Sierra Madre, South Pasadena, Sunland, Tujunga, Eagle Rock, Highland Park, Glassell Park, and Los Angeles. Our HVAC services in Glendale team can help confirm the right placement for new equipment given local setback and noise requirements, so you’re not paying for a relocation twice.

Don’t Assume a “Few Feet” Move Is a Minor Job

The common assumption — “it’s only moving a couple of feet, it won’t cost much” — isn’t reliable, and it’s worth understanding why before budgeting around it.

Even a small shift of just a couple of feet sometimes requires a complete refrigerant line replacement, if the existing copper line was already bent during the original installation and won’t tolerate a second bend without real risk of cracking and leaking. That means a “minor” relocation can end up priced close to a “major” one, because the line replacement — not the distance moved — is what actually drives the labor and material cost. This nuance gets a brief mention in passing in some industry sources but rarely gets flagged as its own planning consideration, which means it’s easy to budget for a cheap move based on distance alone and then be surprised when the quote reflects the condition of the existing line instead.

Get an Accurate Price for Your HVAC Relocation

The real cost of moving your HVAC unit depends on relocation distance, site access, and whether it’s the AC condenser or the furnace being moved — and the only way to pin that number down is a technician assessing your specific setup in person.

Cold Cloud Mechanical serves Los Angeles, Glendale, Burbank, Pasadena, Altadena, Arcadia, La Cañada, Sierra Madre, South Pasadena, Sunland, Tujunga, Eagle Rock, Highland Park, and Glassell Park. Reach out for a free assessment and written quote before committing to a relocation plan.

Standards & Sources:

• U.S. Environmental Protection Agency (EPA), refrigerant handling and R-22 phaseout regulations — epa.gov
• ENERGY STAR, HVAC system installation and relocation guidance — energystar.gov
• Air Conditioning Contractors of America (ACCA), residential HVAC installation standards — acca.org

Author Alex Butakov

Co-founder, CEO & Technical Director at Cold Cloud Mechanical, a Daikin Comfort Pro dealer and licensed C-20 and C-38 HVAC contractor serving Greater Los Angeles.
