2.5-Ton Goodman Heat Pump Replacement in Glendale
Cold Cloud Mechanical completed a full split heat pump system changeout in Glendale, replacing aging equipment with a matched 2.5-ton Goodman R-32 condenser and ECM air handler, with permit support, Title 24 documentation, startup, charging, and commissioning.
A complete heat pump system changeout with matched Goodman equipment
This project covered a full HVAC system replacement at a residence in Glendale, ZIP 91206, east of the Verdugo foothills. The existing split system had reached the end of its useful service life, and the homeowner chose a complete changeout rather than continuing to invest in repairs on aging equipment.
Cold Cloud Mechanical replaced both the outdoor and indoor units with a matched 2.5-ton Goodman heat pump package running R-32 refrigerant. The new system is AHRI-certified as a pair, which helps protect real-world performance rather than relying on mismatched equipment that only looks compatible on paper.
Why a full matched system replacement made sense
The existing system had reached the point where continued repairs would not provide the homeowner with the reliability, efficiency, or warranty protection of a properly matched new heat pump system.
The old equipment had reached the end of useful service life
Replacing only one part of the system would have left the homeowner with aging components, limited performance certainty, and a higher risk of future breakdowns.
The new system needed AHRI-matched performance
A matched condenser and air handler help the system perform as rated, especially during part-load conditions that are common in Glendale’s mild shoulder seasons.
What Cold Cloud Mechanical completed
The project included refrigerant recovery, removal of old equipment, crane placement of the new outdoor unit, indoor air handler replacement, nitrogen pressure testing, triple evacuation, refrigerant charging, electrical work, permitting, and commissioning.
- Recovered refrigerant from the existing system in accordance with EPA Section 608 requirements.
- Removed and hauled away the existing outdoor condenser and indoor air handler.
- Set the new 2.5-ton Goodman heat pump on the existing pad location using a standard crane.
- Installed the new 2.5-ton multi-position ECM air handler in the existing equipment closet.
- Performed a nitrogen pressure test on the line set to verify integrity before opening service valves.
- Completed a triple evacuation procedure to remove moisture and non-condensables from the refrigerant circuit.
- Weighed in the refrigerant charge per manufacturer specification and adjusted for line set length.
- Installed a new fused disconnect at the outdoor unit.
- Installed a new liquidtight whip from the disconnect to the condenser.
- Pulled the permit with the City of Glendale and prepared Title 24 documentation.
- Coordinated inspection through the office.
- Completed full system startup, airflow verification, and commissioning.
- Registered the equipment for the 10-year parts warranty.
Matched Goodman R-32 heat pump and ECM air handler
The final system pairs a Goodman R-32 outdoor heat pump with a matching Goodman ECM multi-position air handler, installed as an AHRI-certified combination and registered for warranty coverage.
Goodman GLZS4BA3010A
2.5-ton single-stage heat pump, 14.5 SEER2, R-32 refrigerant, 208/230V.
Goodman AMST30BU1300A
2.5-ton multi-position air handler with ECM multi-speed motor, R-32 compatibility, and 240V power.
AHRI Reference 215213872
Matched system pairing documented through AHRI certification.
10-year parts warranty
Manufacturer warranty registration was completed at startup.
Matched equipment and proper commissioning protect real performance
A 2.5-ton matched heat pump is a clean fit for many Glendale single-family homes in the 91206 area, where summer cooling loads are real but not extreme and winter heating demand stays well within heat pump operating range.
The ECM multi-speed air handler supports better low-speed run time, which can improve comfort, humidity behavior, and noise compared to older fixed-speed blower setups. Starting with R-32 refrigerant also places the system on the current direction of residential HVAC refrigerant technology.
Before, during, and after the Glendale heat pump replacement

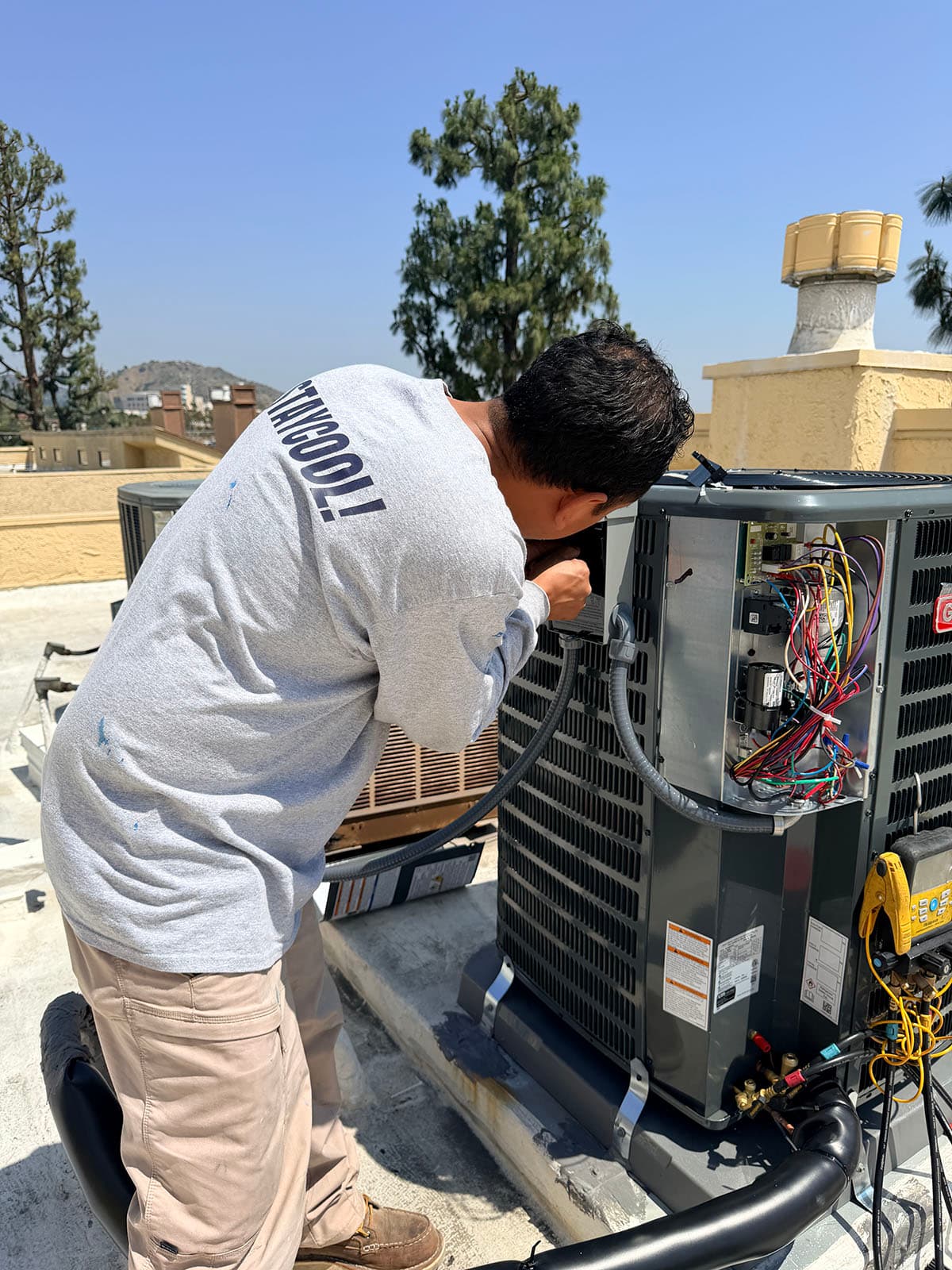

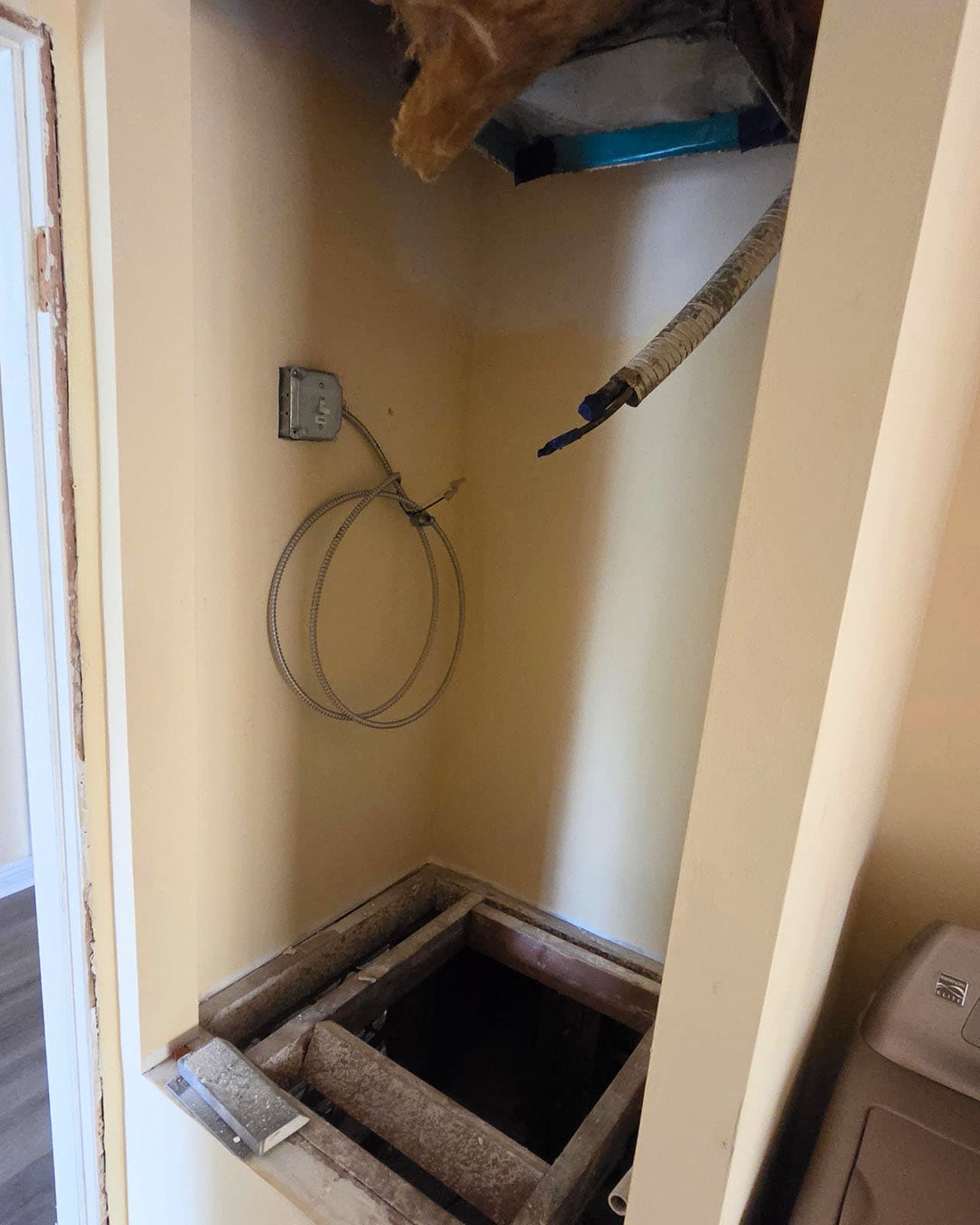

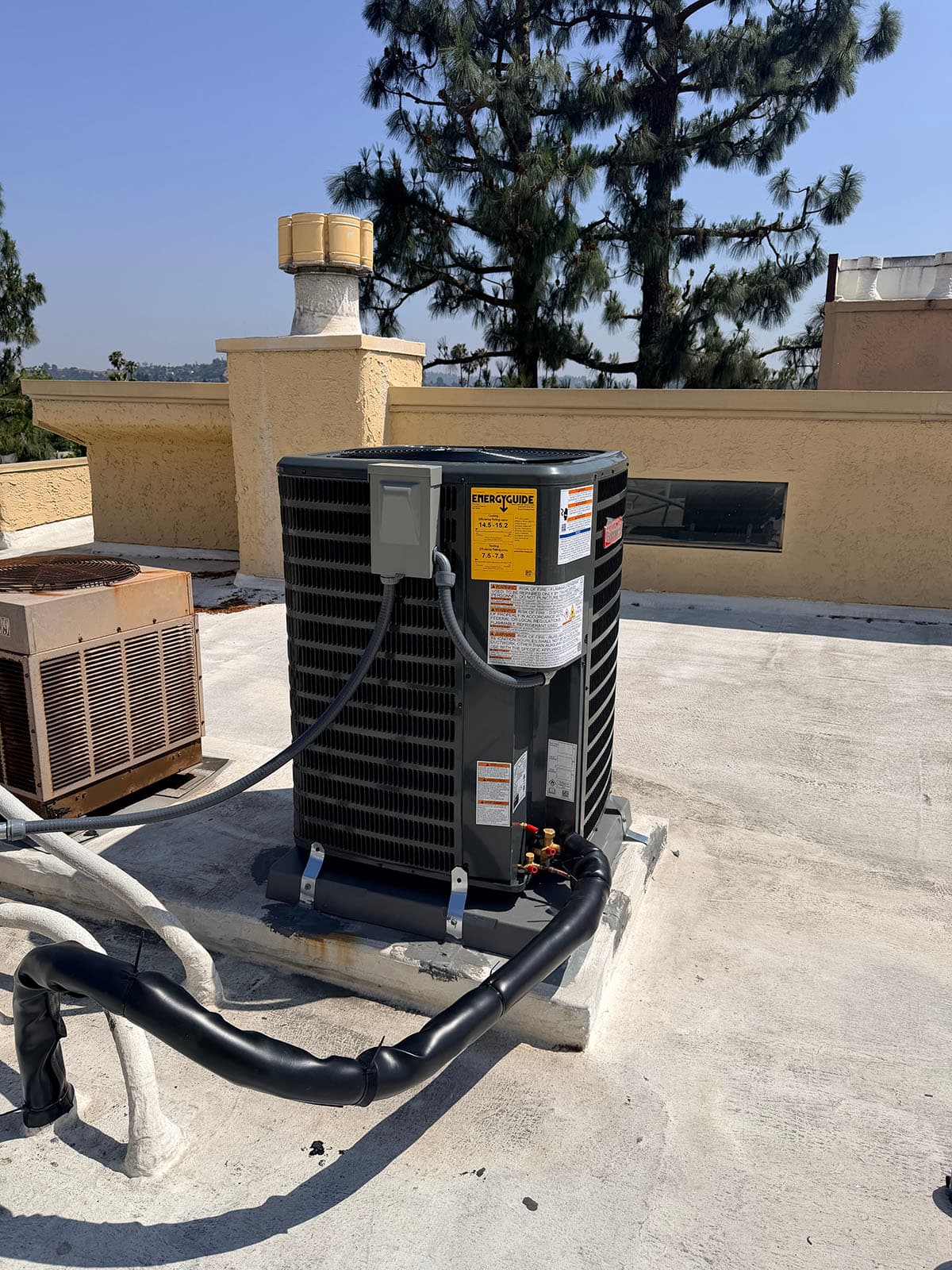

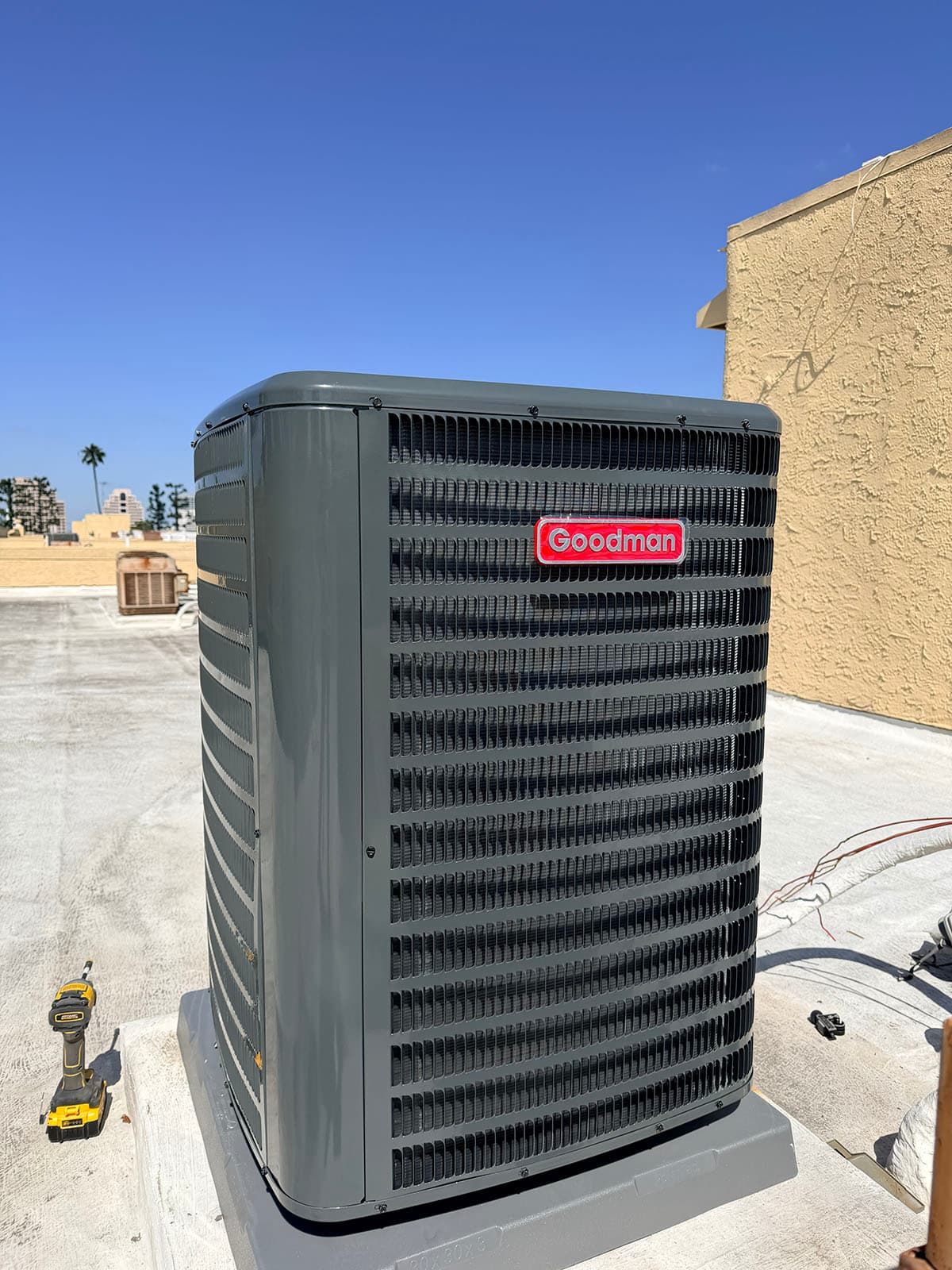

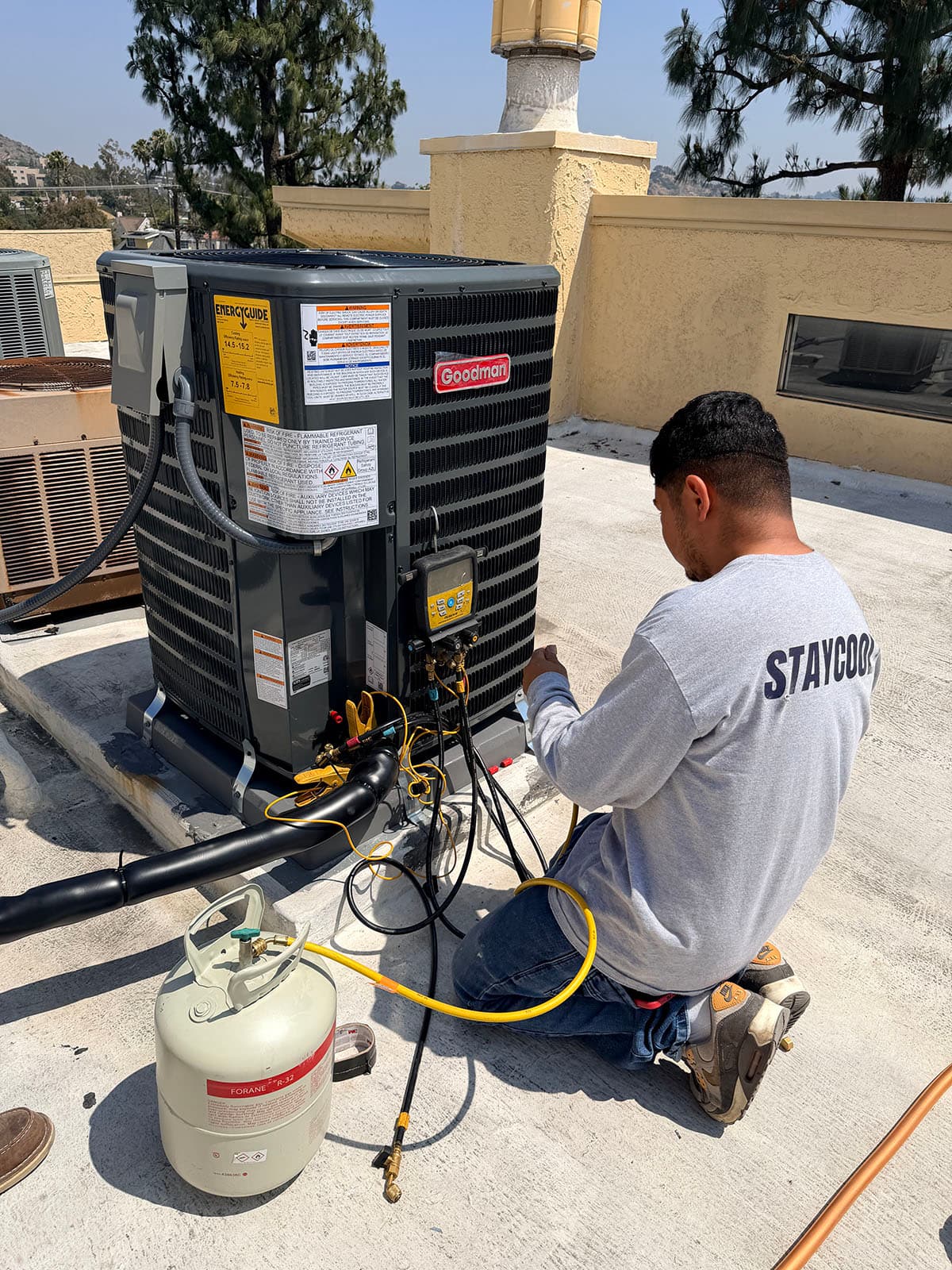

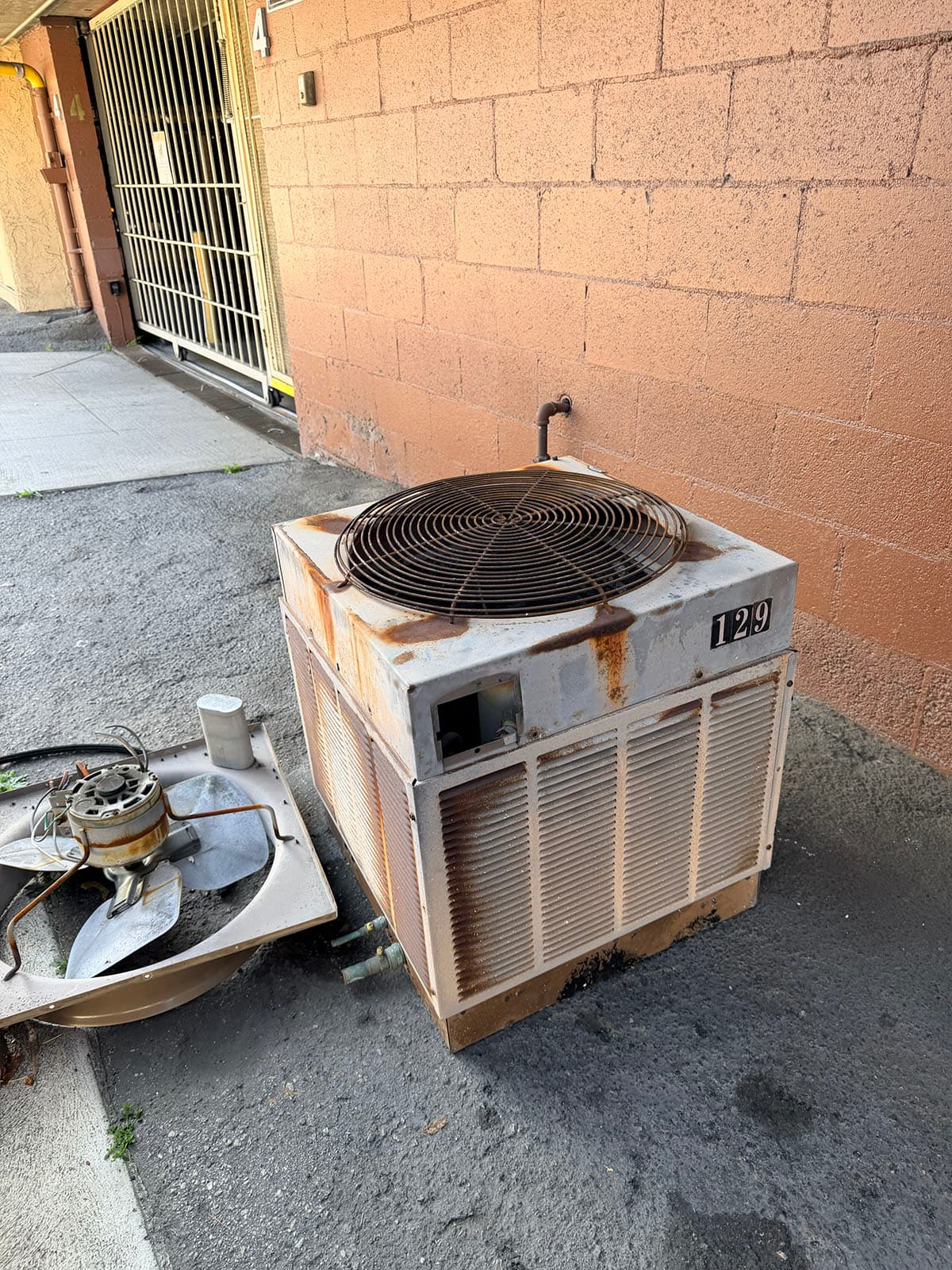

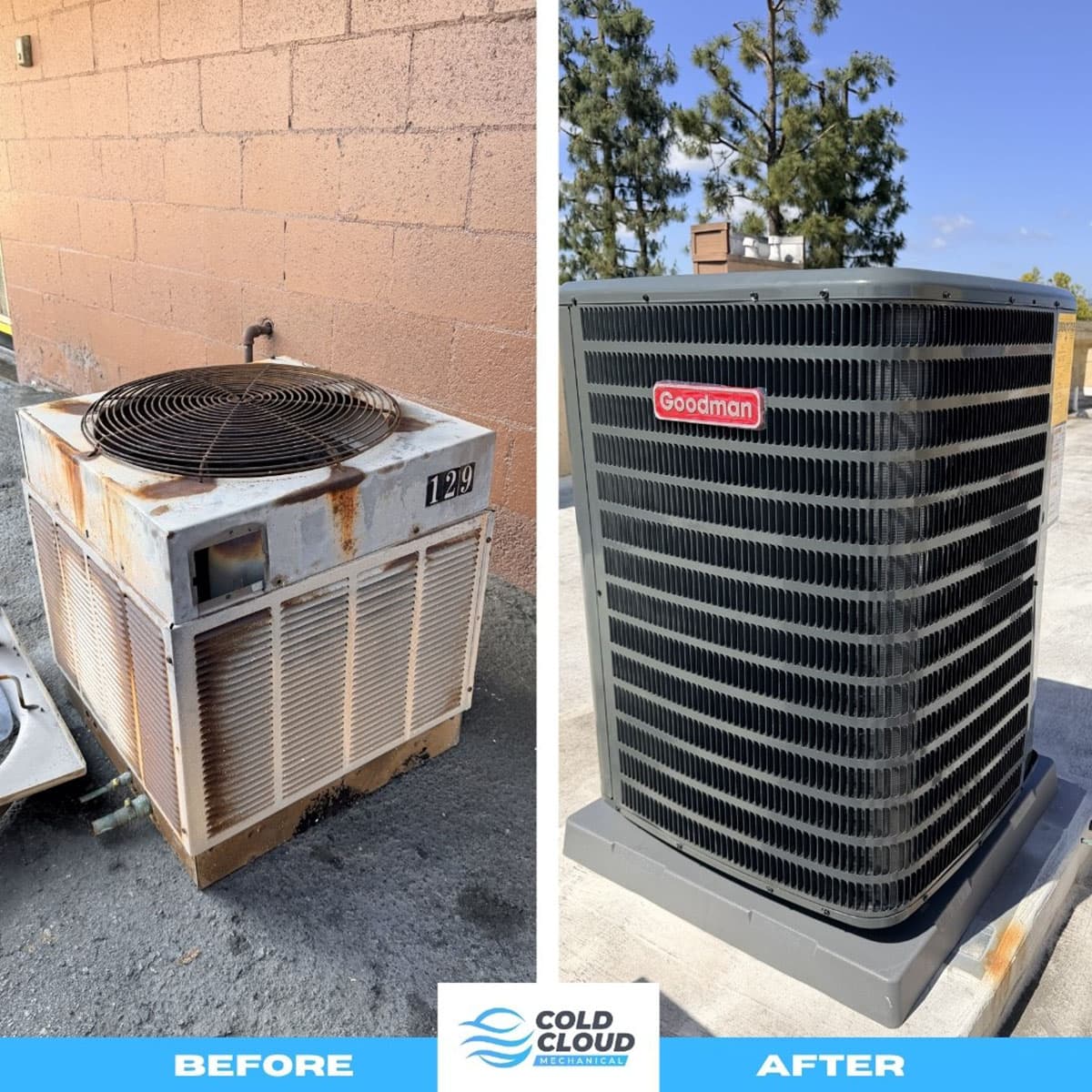

The photos below show the old outdoor condenser, old indoor air handler closet, new Goodman outdoor unit, service panel startup, refrigerant charging, commissioning, and final before-and-after view.
A permitted, documented, warranty-registered heat pump replacement
This project gave the homeowner a fully matched Goodman heat pump system with documented performance, proper refrigerant setup, Title 24 paperwork, permit handling, inspection coordination, and warranty registration.
Matched system performance
The AHRI-certified condenser and air handler pairing helps the equipment perform as intended instead of relying on mismatched components.
Clean refrigerant commissioning
Nitrogen pressure testing, triple evacuation, and weighed-in refrigerant charge helped prepare the system for reliable operation.
Permit and Title 24 documentation
The project included City of Glendale permit handling, Title 24 documentation, inspection coordination, and completed warranty registration.
Planning a heat pump replacement?
Cold Cloud Mechanical installs matched heat pump systems with proper sizing, refrigerant commissioning, electrical work, permit support, Title 24 documentation, and clean startup.
