Mini Split Sizing Guide for LA: What Size Do You Actually Need?

A national BTU calculator will tell you exactly what size mini split to buy — and for half of LA’s housing stock, it’ll be wrong by a full capacity tier. Here’s why, and what actually gets the number right.

Quick answer: Most rooms in Los Angeles need 18-30 BTU per square foot for a mini split, not the standard 20-25 BTU/sq ft you’ll find in national charts. A 500 sq ft room in a 1925 Glendale Craftsman with single-pane windows needs an 18,000 BTU unit. The same 500 sq ft in a new ADU with R-30 insulation and dual-pane low-E windows needs only 9,000 BTU. Square footage is the starting point, not the answer – a real Manual J load calculation looks at insulation, windows, ceiling height, sun exposure and local climate zone before recommending tonnage.

I’m Alex Butakov, co-founder, CEO & Technical Director at Cold Cloud. I size mini splits every week across Glendale, Pasadena and the rest of the LA area using ConduitTech for room-by-room Manual J and Manual D calculations. The number of “20 BTU per square foot” rules of thumb you’ll find online is high and the number of those that survive a real load calculation on an LA bungalow is essentially zero. Below is the actual sizing math, what to use as a starting point and the four factors that move the answer most in our climate.

If you want a properly sized system instead of a guess, schedule a ductless install assessment or call (747) 298-8580.

Why the Square Footage Method Gets It Wrong in LA

The “multiply square footage by 20 to 25 BTU” rule was built for an average American home: 2×4 walls with fiberglass batt insulation, dual-pane windows, an attic with R-30 and a moderate climate. That home doesn’t exist in most of LA’s older neighborhoods.

It’s also worth noting which direction most national rules of thumb actually skew, and why. Many “hot climate” BTU/sq ft guidelines are pulled from humid Southeast and Gulf Coast markets, where the cooling load includes a heavy dehumidification component on top of pure temperature — a mini split there is doing double duty pulling moisture out of the air as well as cooling it. LA’s heat is dry. That means our baseline BTU/sq ft for a well-insulated home actually runs lower than a generic “hot climate” chart would suggest, even though our older housing stock’s poor insulation and single-pane windows push the number right back up for a different reason. Two separate effects pulling in opposite directions is exactly why blindly applying a national chart to an LA home is unreliable in both directions, not just one.

Three things break the formula here:

1. Housing age. Half the residential stock in Glendale, Pasadena, Altadena and South Pasadena was built before 1950. Original single-pane windows, lath-and-plaster walls without cavity insulation and attics at R-11 or worse are the norm, not the exception. Cooling load in these homes runs 25-40% higher than the rule of thumb predicts.
2. Climate zone. California Title 24 places most of LA County in climate zone 9, with the inland foothills (La Crescenta, Altadena above the 210, Tujunga) in zone 14. Zone 14 has cooling loads roughly 15-20% higher than zone 9 because of hotter summer design temperatures.
3. Solar gain. West-facing rooms in LA take a beating from 2pm to 7pm in summer. A 500 sq ft master bedroom with large west-facing windows can have 30-40% more cooling load than an identical north-facing room. National calculators don’t ask about orientation.

This is why a Manual J load calculation – the ACCA industry standard – is the right way to size a mini split. It takes 30 minutes of field measurements and produces a room-by-room BTU requirement that accounts for all of the above. The square footage rule is a starting point for a ballpark; Manual J is what you pay for at installation.

Mini Split Sizing Chart by Room Size (LA Baseline)

Use this as a starting point for an average LA home with some envelope upgrades – dual-pane windows, R-19 wall insulation if any, R-30 attic. Adjust up or down using the factors in the next section.

One thing to notice: 9,000 BTU is the smallest mini split commonly available, so any room under 400 sq ft gets a 9k head whether the math calls for 5,000 or 9,000. Modern inverter compressors modulate down to 15-20% of rated capacity, so a slightly oversized 9k unit in a 200 sq ft office isn’t a problem – it just runs at low speed most of the time.

If you’re replacing an existing unit, there’s a quick shortcut before you call anyone: check the model number on the outdoor unit’s data plate. Most manufacturers embed capacity directly in the model string — look for a two-digit even number (09, 12, 18, 24, 36) somewhere in the sequence, and multiply it by 1,000 to get the rated BTU. It’s not a substitute for checking whether that original size was even correct, but it tells you what you’re starting from.

What Size Mini Split for 500 Sq Ft?

For a 500 sq ft room in LA, the answer depends entirely on the building. Three real scenarios:

• 1925 Craftsman bedroom, single-pane windows, no wall insulation, west-facing exposure: 18,000 BTU. The envelope leaks heat, the windows let in afternoon sun and the attic above is uninsulated. A 12k head will run flat out and never catch up on a 95-degree September day.
• 1965 tract home bedroom, dual-pane retrofit windows, R-13 walls, R-30 attic: 12,000 BTU. This is the textbook 24-25 BTU/sq ft case. A 1-ton head is right.
• New ADU studio, 2×6 walls with R-21, R-38 attic, dual-pane low-E windows: 9,000 BTU. Tight envelope, minimal solar gain and modern construction means a 9k head is the smallest available and still slightly oversized – which is fine because the inverter throttles it down.

National articles will tell you “500 sq ft = 12,000 BTU.” That’s right for one of these three houses and wrong for the other two. The reason real load calculations matter is that the wrong size on a poorly insulated room is the most common complaint I get called to fix six months after a budget install.

The Four Factors That Move Mini Split Sizing in LA

Once you have a baseline from the chart, four factors move the actual number up or down. These are what a Manual J calculation builds in automatically.

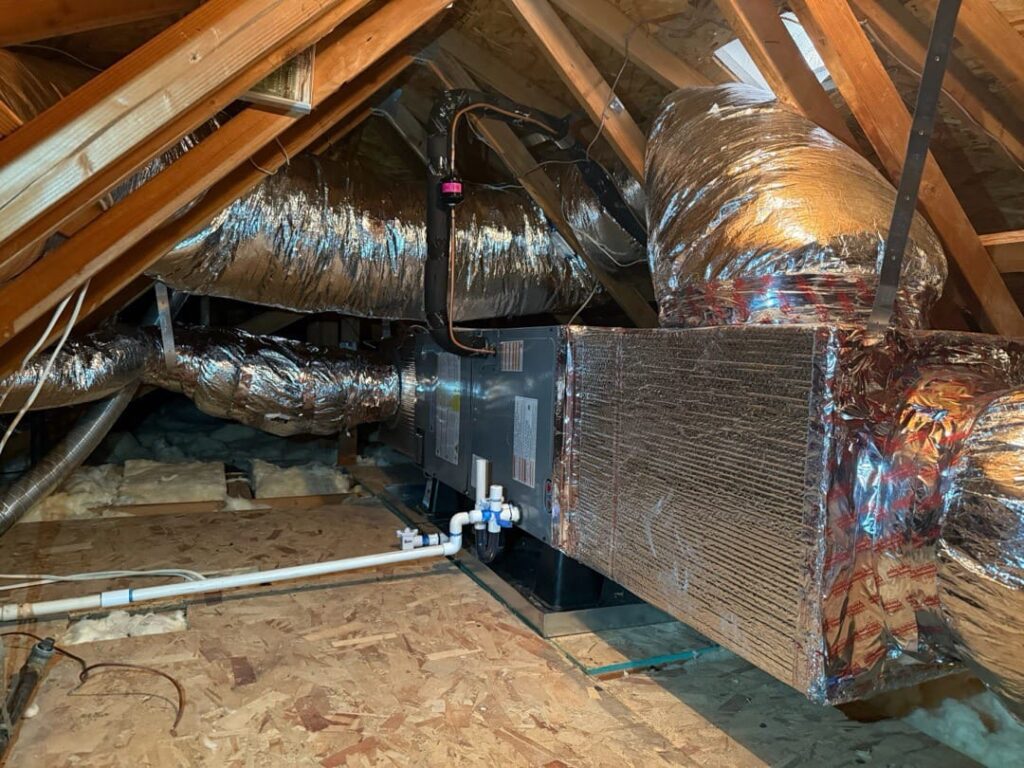

1. Insulation level. A pre-1960 LA home with no wall insulation and an R-11 attic needs 30-40% more BTU than the same square footage in a modern build. If you don’t know your insulation values, an HVAC contractor can do a quick attic inspection – if you can see the joists through the insulation, you’re well under R-30 and need to add capacity.

1. Window area and orientation. A wall of west-facing windows can add 4,000-6,000 BTU to a single room’s cooling load in LA. South-facing matters less in summer (sun is overhead) but adds heat in shoulder seasons. North-facing rooms get a discount. If single-pane windows are still original, add another 15-20% across the board.
2. Ceiling height. The 20 BTU/sq ft baseline assumes 8-foot ceilings. Vaulted or 10-foot ceilings – common in Pasadena and South Pasadena bungalows after attic conversion – mean 25% more air volume to condition. Add 20-25% to capacity for anything over 9 feet.
3. Occupancy and use. A bedroom for one person needs less than the same square footage used as a home gym or kitchen. People give off about 400 BTU each. A kitchen with a regularly used range and ovens adds significant load. Manual J asks how the room is actually used because it changes the answer.

How to Size a Mini Split for an ADU or Garage Conversion

ADUs and converted garages need their own sizing pass because they almost never match the assumptions baked into national charts. Two patterns I see constantly:

The first is the unconditioned garage converted to a studio without an envelope upgrade. Original concrete slab with no vapor barrier, single-pane jalousie windows, no wall insulation – just stud cavity covered with drywall on the inside. Manual J on this shell returns numbers like 35-40 BTU/sq ft. A 400 sq ft studio in this condition needs 14,000-16,000 BTU, which means an 18,000 BTU head, not a 12,000. The cheaper move is to insulate the walls and replace the windows first, then resize the system smaller.

The second is the new permitted ADU built to current Title 24. 2×6 walls with R-21, dual-pane low-E windows, R-38 attic, properly sealed. The same 400 sq ft studio drops to 6,000-7,500 BTU – well under the smallest available mini split. A 9,000 BTU unit is correct here, oversized by inverter standards but operationally fine.

Title 24 also requires a heat pump as the primary heat source for new ADUs – no gas furnace – so the mini split is doing both cooling and heating year-round. For heating in LA’s mild winters, undersizing matters more than for cooling because the design temperature is only around 35-40°F. A 9k head in a properly built ADU handles both loads. See our heat pump installation page for the rebate side of that equation.

Multi-Zone Sizing: Add Up the Heads, Don’t Match Them

For a multi-zone system – one outdoor condenser serving 2-5 indoor heads – the sizing math has one rule that catches most homeowners off guard: the outdoor condenser doesn’t need to equal the sum of the indoor heads.

Manufacturers allow what’s called overprovisioning: you can install indoor heads that total 130-150% of the outdoor unit’s rated capacity. The reasoning is that not every room peaks at the same time. The west-facing master bedroom hits peak load at 5pm. The east-facing office hit peak at 9am. The kitchen peaks when someone is cooking dinner. The outdoor unit only needs to handle the simultaneous load, not the theoretical maximum.

Practical example: a 3-zone setup with 9,000 + 12,000 + 12,000 BTU indoor heads totals 33,000 BTU of indoor capacity. The correct outdoor condenser is usually a 24,000 BTU unit, not 36,000. The 24k unit will modulate to whatever is needed at any given moment.

Two things to know about this:

1. Overprovisioning works only with inverter-driven multi-zone systems (Daikin Aurora/MXM, Carrier Infinity multi-zone, similar). Older single-stage units don’t handle it well.
2. If every zone runs at peak simultaneously – rare in residential, but possible with extreme heat events – an overprovisioned outdoor unit will throttle back and some zones won’t hit setpoint. For most LA homes this is a non-issue; for whole-home single-thermostat use it matters.

Oversize vs Undersize: What Actually Happens

Both fail, but they fail differently — and each failure mode gives off its own warning signs.

Signs your mini split is too small:

• Runs continuously and never quite catches up to the set temperature on hot afternoons
• Energy bills climb even though the thermostat setting hasn’t changed
• The room stays humid, because the system never cycles off long enough to pull moisture out of the air
• The compressor shows wear or fails well before its rated 10-15 year lifespan

Signs your mini split is too big (fixed-stage or heavily oversized):

• Cools fast, shuts off, then kicks back on again within five to ten minutes (short cycling)
• The room feels cold but still muggy — not enough runtime to actually dehumidify
• Startup current shows up as a noticeable bump on the electric bill, since starting the compressor draws the most power in the whole cycle
• Equipment ages faster than expected from the repeated hard starts and stops

An undersized mini split runs continuously, struggles to hit setpoint on hot days and burns out the compressor years earlier than rated. This is the worse failure mode in LA’s longer cooling season. An oversized mini split on a fixed-stage compressor short-cycles, which kills efficiency and leaves the room muggy because the run time is too short to remove humidity.

Modern inverter mini splits forgive oversizing more than older equipment because they modulate down to 15-20% of rated capacity. A 12k unit in a room that really needs 9k is acceptable. A 24k unit in a room that needs 9k is not – the unit can’t throttle that far down and will short-cycle.

The honest answer from someone who installs these every week: aim for the smallest size that comfortably meets the calculated load. Modern inverter equipment makes mild oversizing safer than it used to be, but it’s not a license to skip the math.

Do I Need a Manual J for a Single-Room Mini Split?

For a single room in a modern, well-insulated house, the rule of thumb (adjusted for the four factors above) is usually accurate enough – within one capacity tier. For an older LA home, a multi-zone whole-house install, or any ADU, a Manual J is worth the time.

Here’s the math: a Manual J takes about an hour of field work and runs $200-400 as a standalone service or is included in any reputable installation quote. The cost of getting the size wrong on a $7,000 installation is replacing the head, replacing the lineset and another permit – easily $3,000-5,000 in rework, plus six months of bad comfort. The load calculation is cheap insurance.

We include Manual J and Manual D with every mini split installation at Cold Cloud, run through ConduitTech. The calculation also feeds the rebate paperwork – LADWP requires documented sizing for heat pump rebates and the load report is the document they want to see.

When to Call a Professional for Sizing

Call a licensed C-20 HVAC contractor when:

• You’re sizing for a multi-zone system – the overprovisioning math matters and gets it wrong on DIY calculators.
• Your home is older than 1980 with original windows or unknown insulation values.
• You’re sizing for an ADU and need Title 24 compliance documentation, per California Energy Commission standards (https://www.energy.ca.gov/programs-and-topics/programs/building-energy-efficiency-standards).
• You want the LADWP heat pump rebate – they require documented load calculations (https://www.ladwp.com/crp).
• You’re getting quotes that vary by more than one capacity tier (one contractor says 12k, another says 18k – someone’s guessing).

Cold Cloud sizes and installs mini splits across Glendale, Burbank, Pasadena, Altadena, Alhambra and the broader LA area. We’re a Daikin Comfort Pro dealer and licensed C-20 and C-38 contractor (#1131338). Every install includes Manual J and Manual D load calculations, permit, HERS testing and rebate paperwork. Schedule a free in-home assessment or call (747) 298-8580.

Frequently Asked Questions

What size mini split for 1,000 sq ft?

For 1,000 sq ft in an average LA home, expect 22,000-28,000 BTU – a 24,000 BTU (2-ton) single-zone unit or a multi-zone system with two heads. Older homes with poor insulation can need 30,000+ BTU; newer construction can do it with 18,000-20,000 BTU.

Can a 12,000 BTU mini split cool 500 sq ft?

Yes in most cases – a 12,000 BTU (1-ton) unit is the standard recommendation for 500 sq ft. But in an older LA home with single-pane windows or west-facing exposure, you may need 18,000 BTU. Insulation and orientation matter more than square footage alone.

How many BTU per square foot for a mini split in LA?

In LA, plan for 18-30 BTU per square foot depending on the home. Modern, well-insulated construction needs about 18-20 BTU/sq ft. Average homes with some upgrades need 22-25. Pre-1960 homes with single-pane windows and minimal insulation need 28-35 BTU/sq ft.

How do I calculate square footage for a round or irregularly shaped room?

For a circular room or area, use radius × radius × π (roughly 3.14) to get square footage — a 10-foot radius nook works out to about 314 sq ft. For odd-shaped rooms, break the space into rectangles and simple shapes, calculate each separately, and add them together rather than trying to estimate the whole room at once.

Is it better to oversize or undersize a mini split?

Slightly oversized is safer with modern inverter mini splits because they modulate down. Significantly oversized causes short cycling and humidity problems. Undersized never catches up on hot days and shortens equipment life. Aim for the smallest size that meets the calculated load.

Do I need a load calculation for a single-room mini split?

For one room in a modern home, the rule of thumb plus adjustments is usually accurate to within one capacity tier. For older LA homes, multi-zone systems, ADUs, or any installation seeking the LADWP rebate, a Manual J load calculation is required for accuracy and paperwork.

How long does mini split sizing take?

A professional Manual J takes about an hour of field measurements plus 30-60 minutes of office work to produce the report. The calculation is room-by-room and includes all four sizing factors. Most installers include it free as part of an installation quote.

Sources

• California Energy Commission — https://www.energy.ca.gov/programs-and-topics/programs/building-energy-efficiency-standards — Title 24 climate zone definitions
• LADWP — https://www.ladwp.com/crp — heat pump rebate documentation requirements
• ACCA — Manual J 8th Edition residential load calculation standard (industry standard, not a government source, referenced for methodology only)
