Daikin Fit DH7 Installation with Return Correction and Duct Rebalance
Cold Cloud Mechanical replaced a single-stage HVAC system with a Daikin Fit DH7 variable-capacity system, corrected an undersized return, resealed rooftop duct penetrations, re-insulated garage duct runs, and balanced airflow room by room.
A system upgrade that became a full airflow correction project
This West Hollywood project began as a planned HVAC system upgrade, but the pre-installation inspection revealed several connected problems that were limiting comfort, efficiency, and indoor air quality.
The existing single-stage system was operating outside its design parameters. A single 16-inch return duct was feeding a 4-ton air handler, measured duct pressure was above the rated ceiling, distant rooms were short on airflow, rooftop duct mastic had cracked, and deteriorating garage duct insulation was creating an air quality concern in a converted home office.
Why the return and duct balance had to be corrected
Replacing the equipment alone would not have fixed the root problem. The old duct system was forcing the air handler to work against excessive resistance, while several rooms were receiving less airflow than they needed.
The return duct was undersized for the air handler
One 16-inch return duct feeding a 4-ton air handler created a bottleneck. Measured duct pressure reached 1.1 inches against a rated ceiling of 0.8, increasing resistance, energy use, and equipment stress.
Distant rooms were short on airflow
Longer supply runs had too much resistance per foot of travel, which meant rooms farther from the unit received less conditioned air than rooms closer to the system.
What Cold Cloud Mechanical completed
The project combined equipment replacement with return correction, room-by-room airflow targets, Manual D duct balancing, rooftop duct resealing, and garage duct re-insulation.
- Removed and hauled away the existing single-stage HVAC system.
- Installed a Daikin Fit DH7 variable-capacity system.
- Installed a Daikin One MERV 15 whole-home air cleaner.

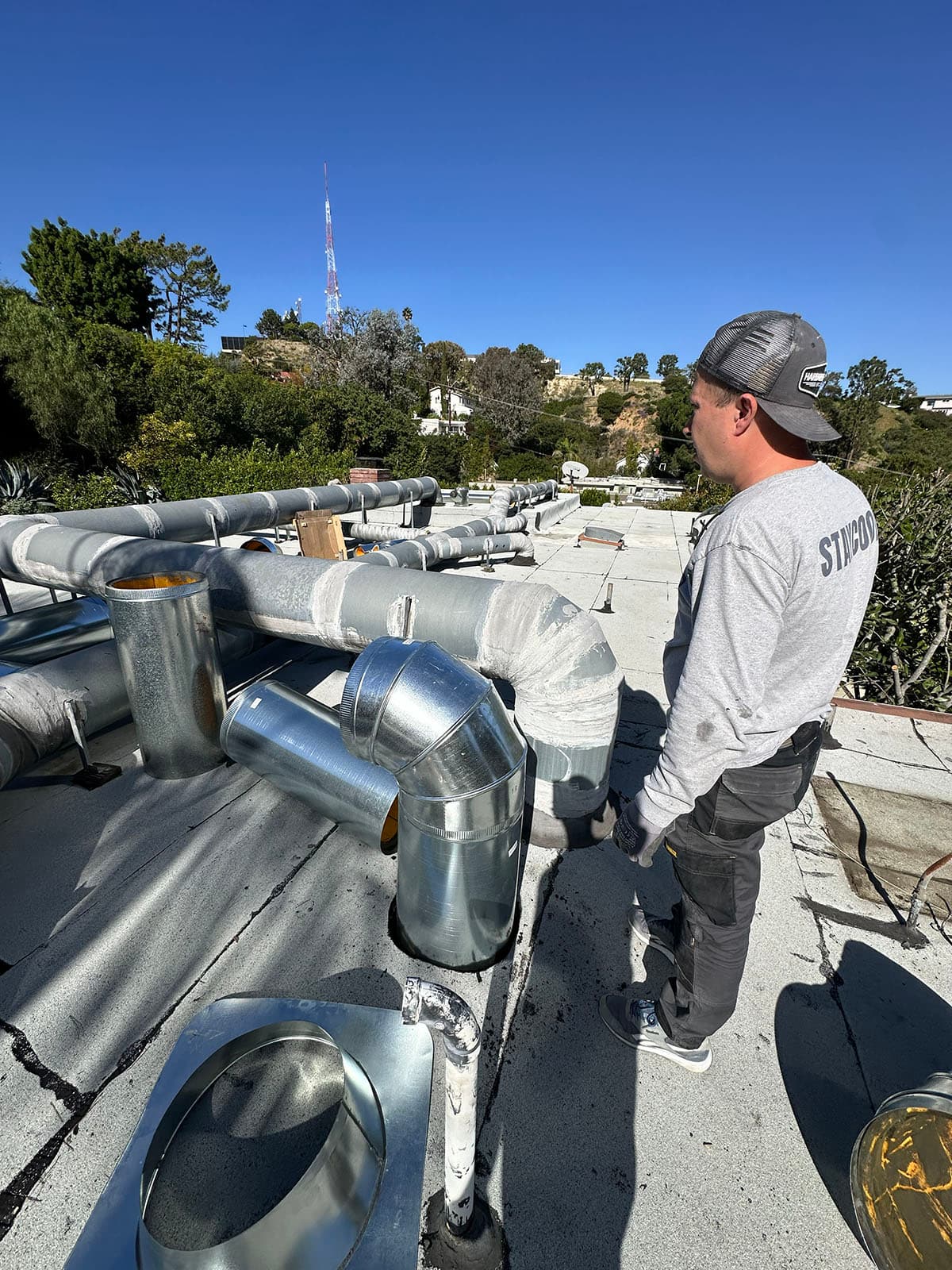

- Cut in a second 16-inch return through the rooftop and terminated it in the hallway to correct static pressure imbalance.
- Calculated each room’s heating and cooling load using Manual J room-by-room analysis to establish proper airflow targets.
- Balanced duct distribution per Manual D, matching airflow to room load and duct geometry.

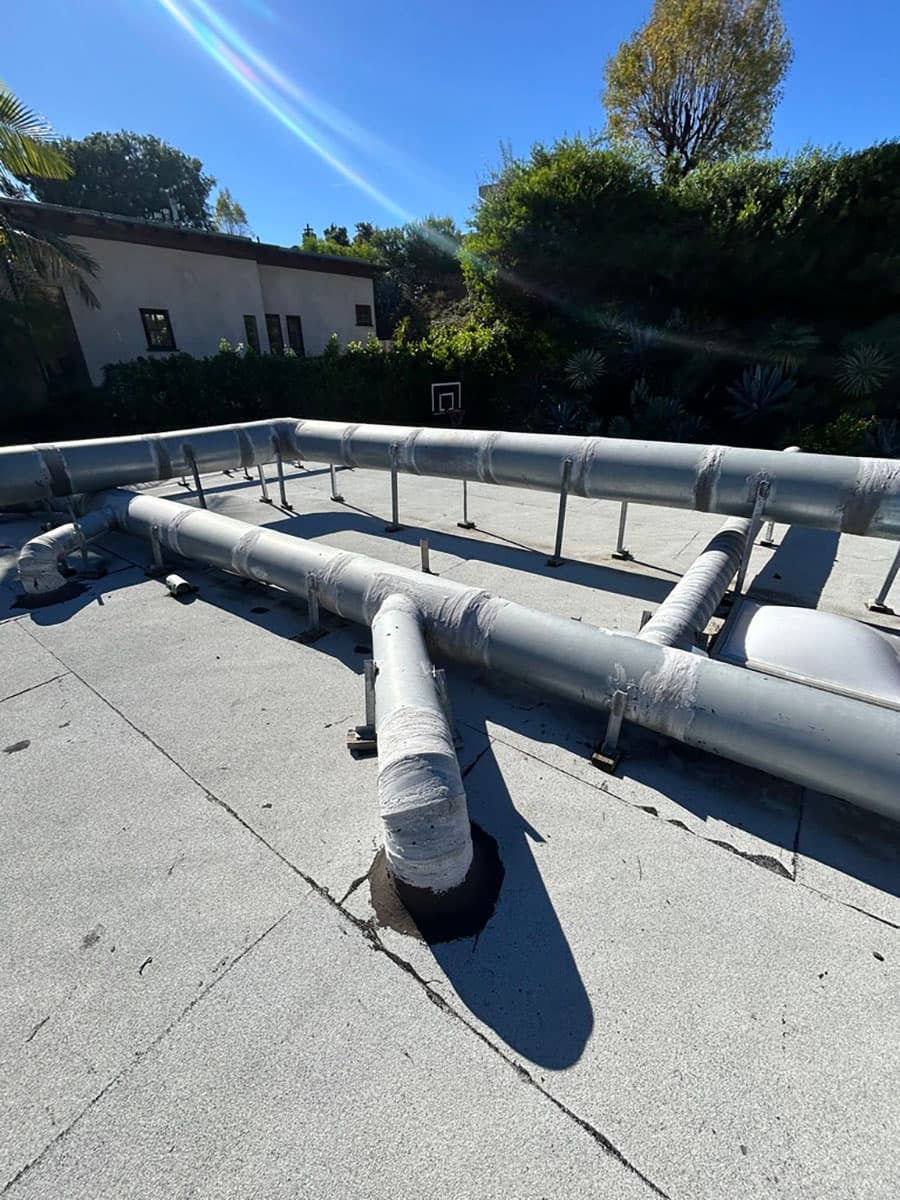

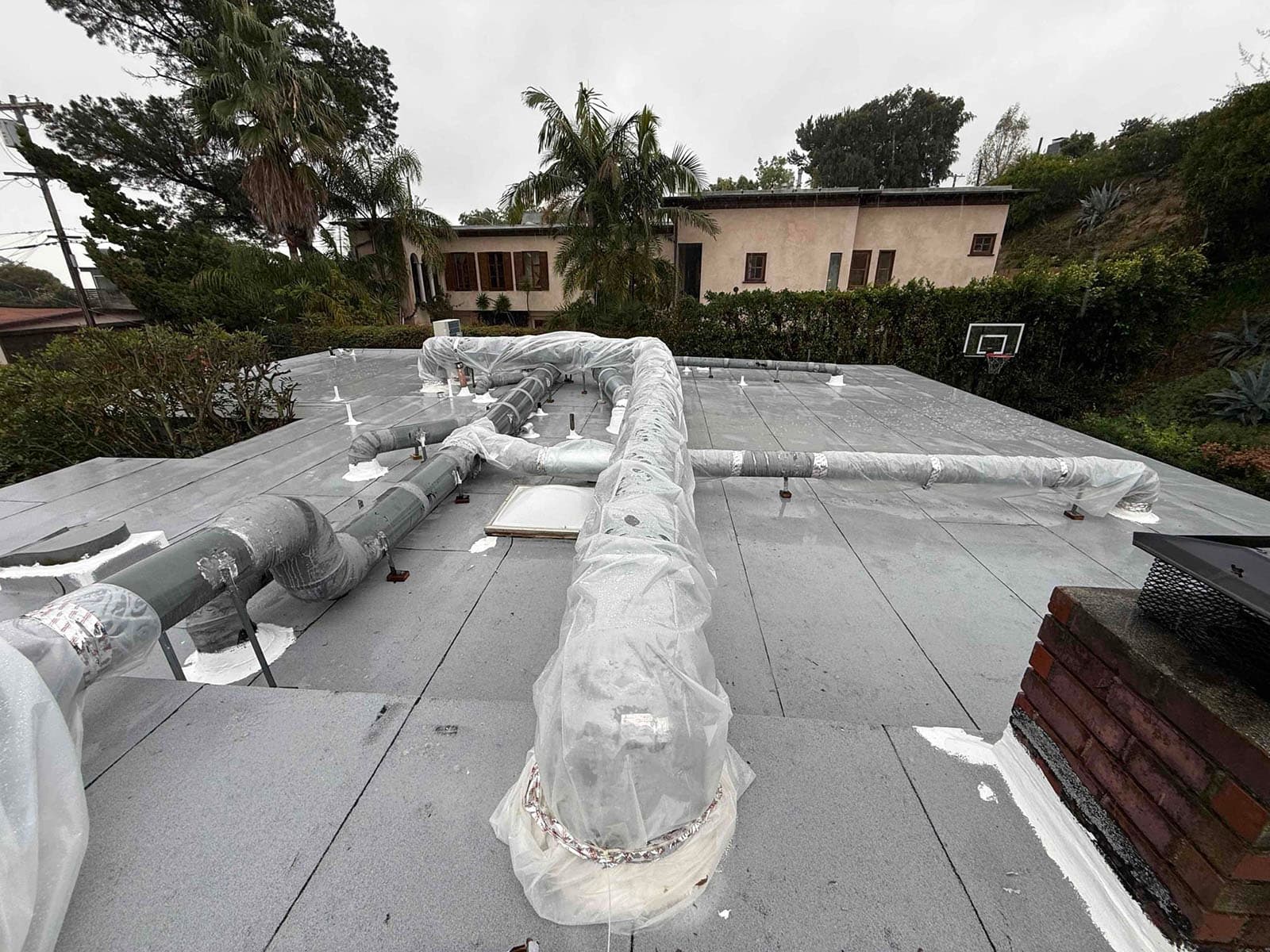

- Completed full mastic reseal of rooftop duct penetrations where previous mastic had dried and cracked.
- Eliminated moisture infiltration at failed rooftop duct seams.

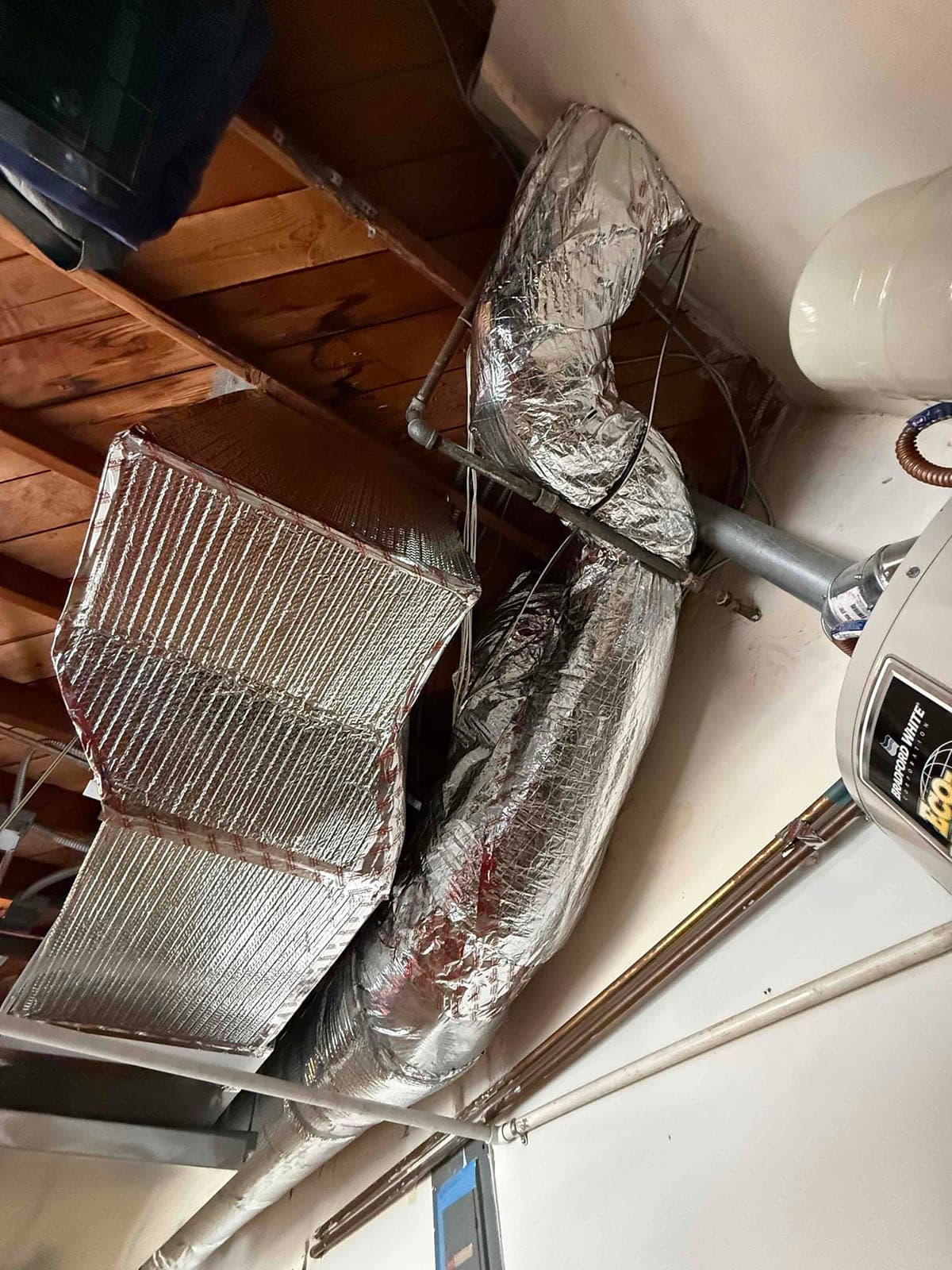

- Removed deteriorated fiberglass duct insulation from garage duct runs.
- Re-wrapped all garage duct runs with foil-faced bubble insulation in a sealed application.
- Eliminated the fiberglass fiber pathway into the converted garage office space.
$5,900 in total rebate value
The homeowner received equipment upgrade incentives that helped reduce the cost of the project while improving system performance, comfort, and air quality.
The homeowner applied for and received the LADWP equipment upgrade rebate.
The Go Zero rebate was applied on behalf of the homeowner at the time of installation.
Total incentive value connected to the West Hollywood system upgrade.
Daikin Fit DH7 with whole-home MERV 15 filtration
The replacement system was selected to improve comfort, efficiency, and indoor air quality — but it was installed only after the duct and return problems were addressed.

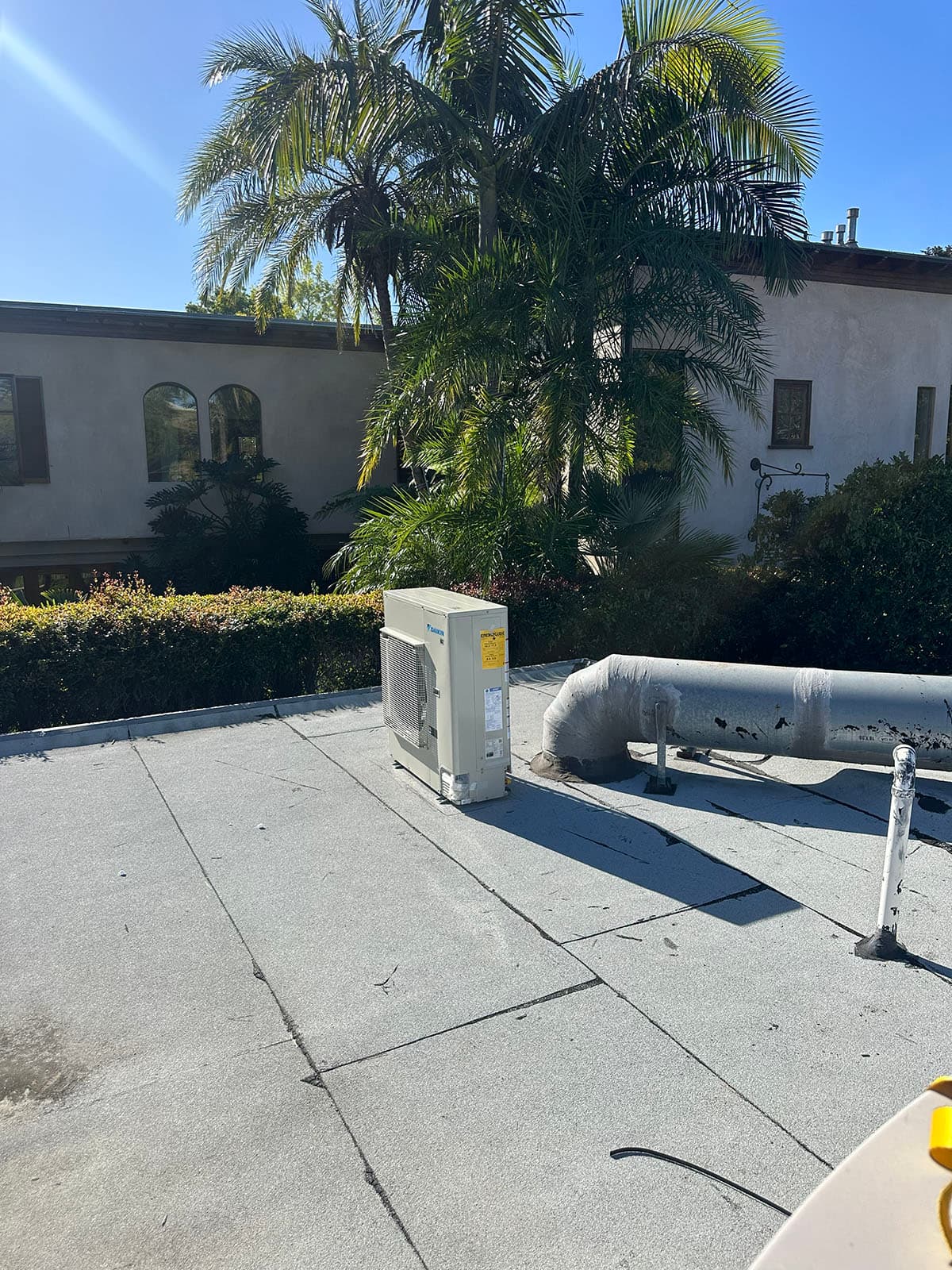

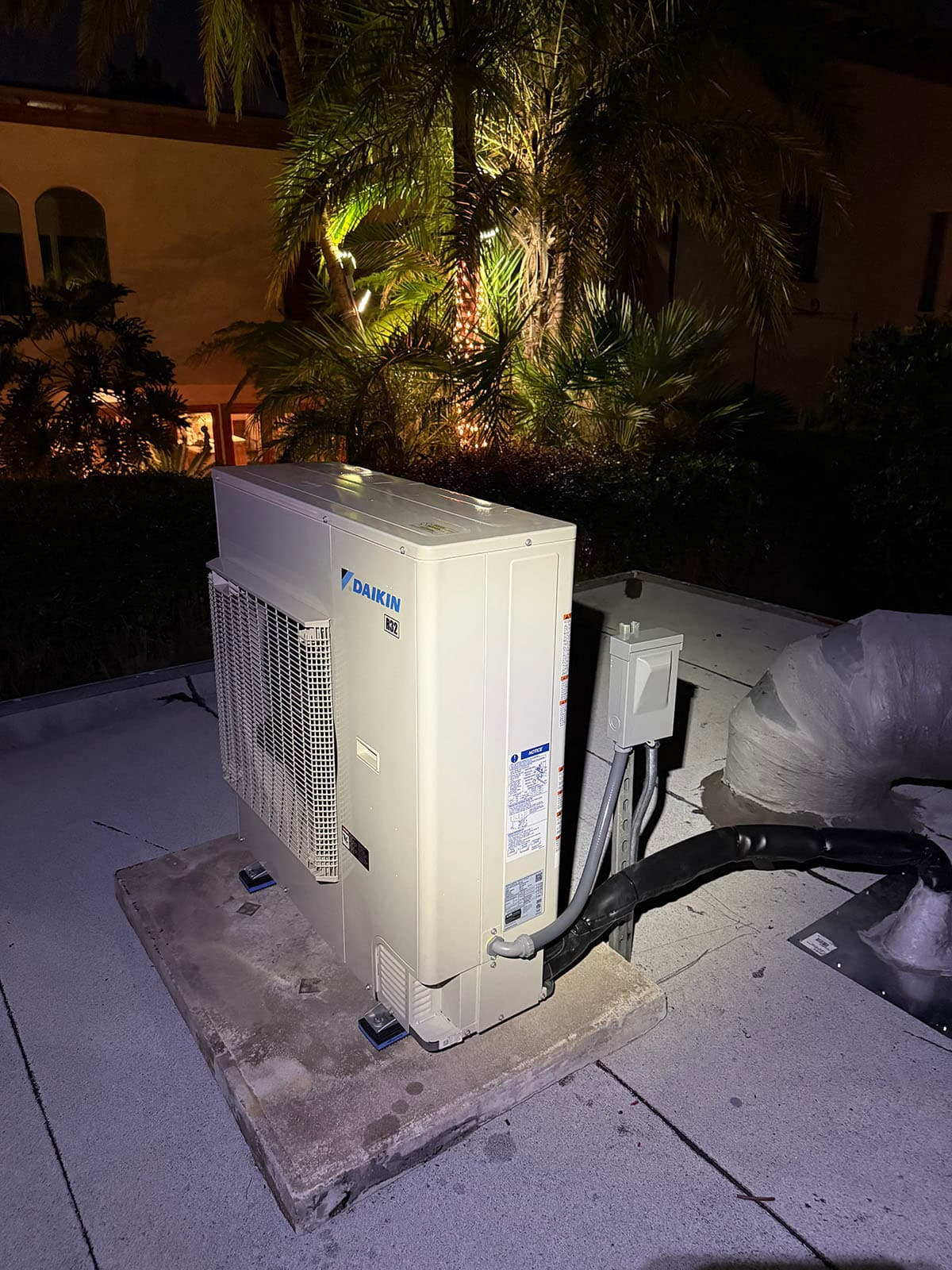

Daikin Fit DH7
Variable-capacity ducted heat pump system designed to modulate output and maintain more consistent indoor comfort than a single-stage unit.

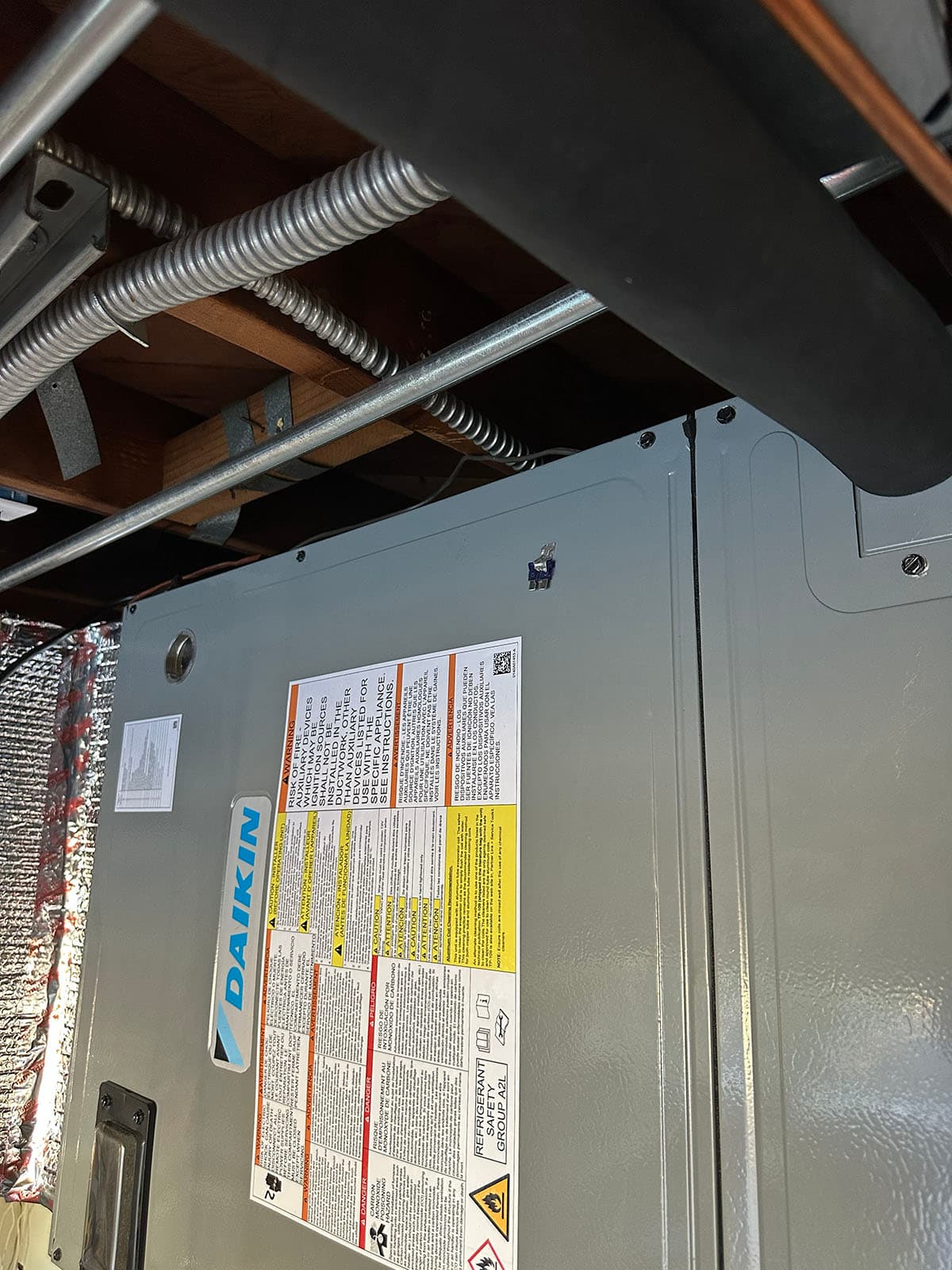

Daikin One MERV 15 Air Cleaner
Whole-home filtration installed to support cleaner indoor air and reduce airborne particles throughout the ducted system.
Second 16-inch return duct
Added through the rooftop and terminated in the hallway to reduce static pressure and remove the single-return bottleneck.
Resealed and re-insulated duct runs
Rooftop duct penetrations were resealed, and garage duct runs were re-wrapped in sealed foil-faced bubble insulation.
The new system could only perform after the duct problems were fixed
Installing a more efficient HVAC unit into the same broken airflow conditions would have limited the benefit of the upgrade. The Daikin Fit DH7’s variable-capacity operation depends on a duct system that can actually move air where it needs to go.
By correcting the return bottleneck, balancing duct distribution, resealing rooftop ducts, and removing deteriorated fiberglass insulation from the garage office duct runs, the system now supports both better comfort and better indoor air quality.
Before, during, and after the West Hollywood HVAC upgrade

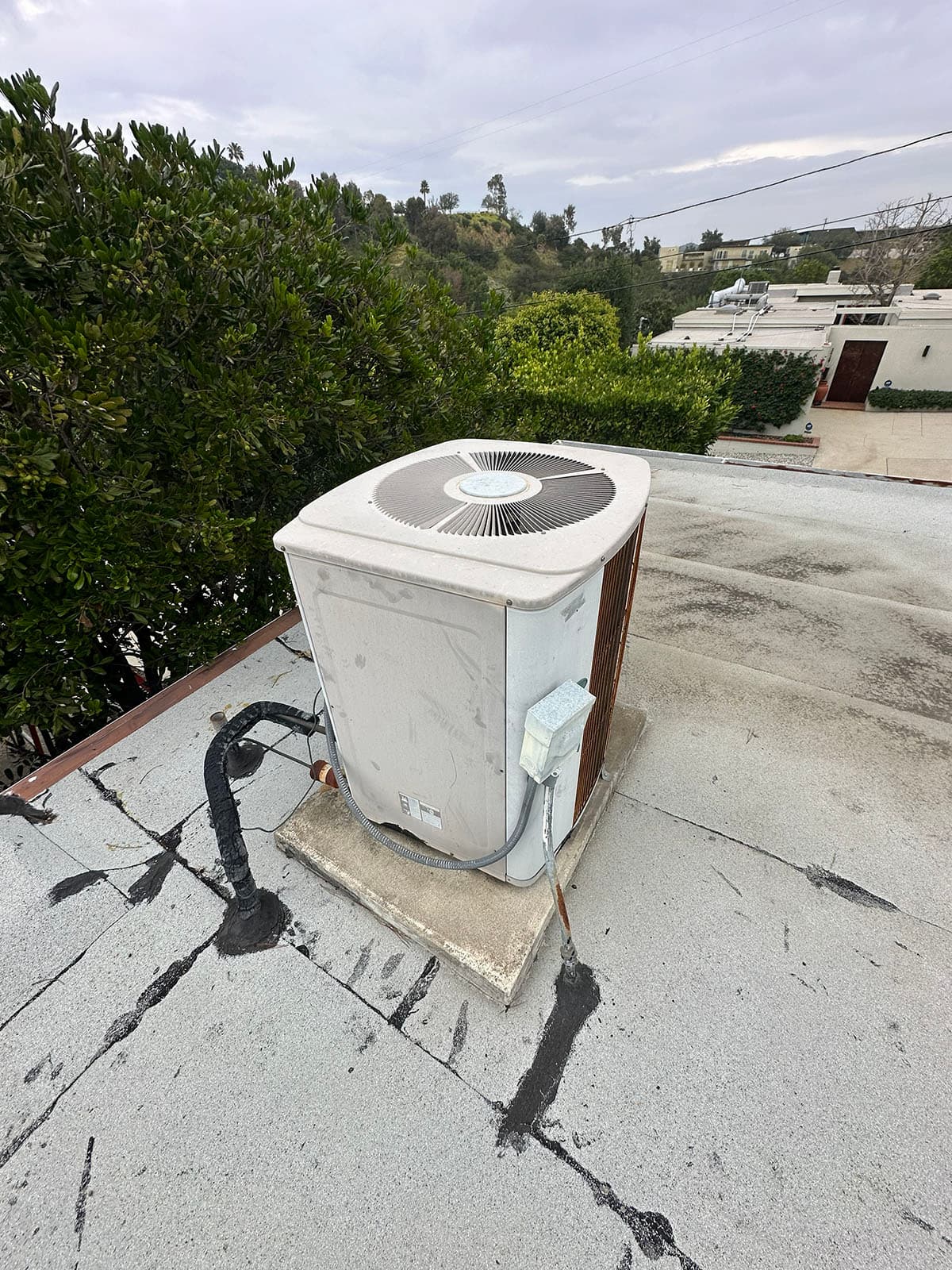

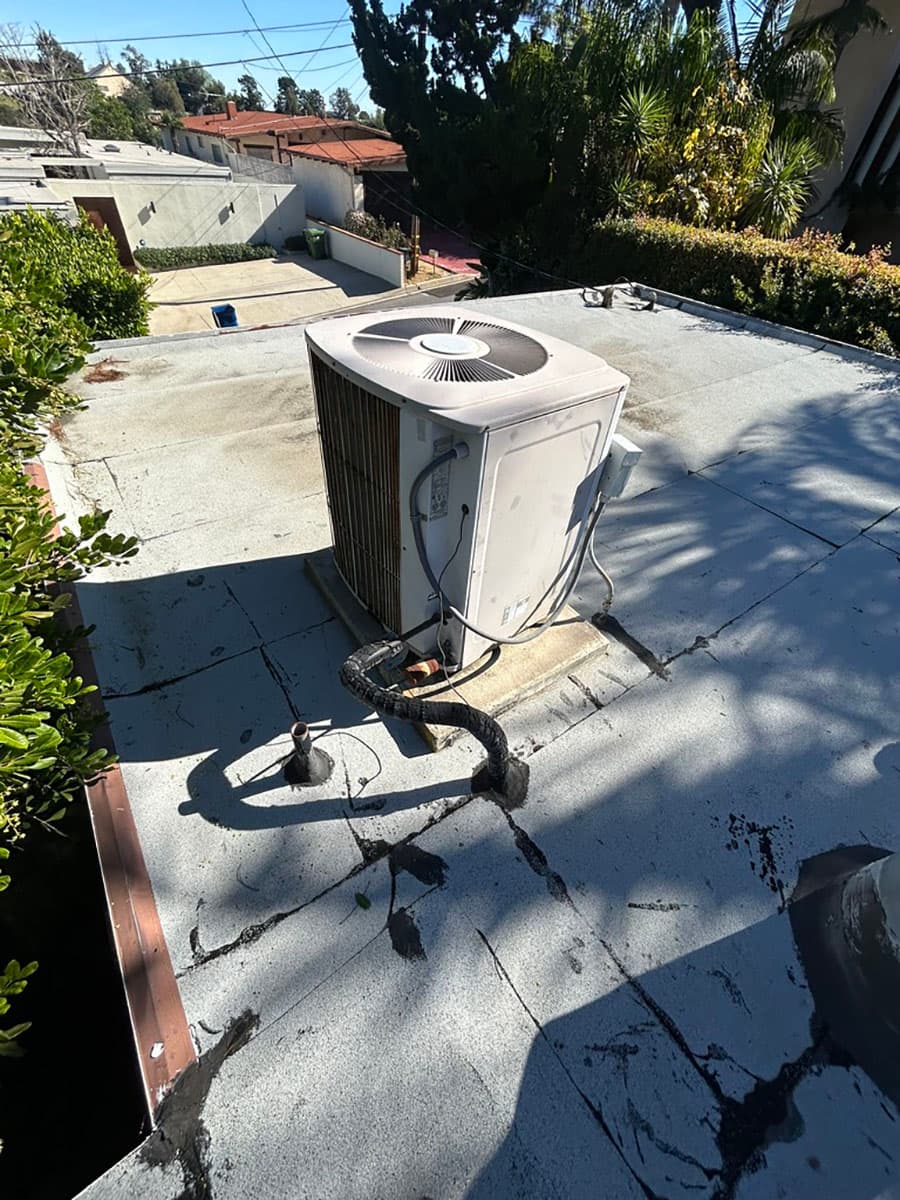

The photos below show the old rooftop unit, new Daikin Fit DH7 installation, duct resealing, return correction, garage duct work, and the final before-and-after comparison.
Better airflow, better filtration, and a system that can work as designed
The project corrected the underlying airflow restrictions instead of only replacing the outdoor equipment. That gave the new Daikin Fit DH7 system the conditions it needed to operate efficiently and deliver comfort more evenly across the home.
Reduced static pressure stress
The second return duct corrected the single-return bottleneck and helped reduce the resistance the air handler had been working against.
Room-by-room airflow correction
Manual J targets and Manual D balancing helped match airflow to each room’s actual heating and cooling load rather than relying on the old duct behavior.
Improved garage office air quality
Deteriorated fiberglass insulation was removed from garage duct runs and replaced with sealed foil-faced bubble insulation to eliminate the fiber pathway.
