Daikin FIT DH7 Heat Pump Replacement in Glendale
Cold Cloud Mechanical replaced an original 1981 split system with a Daikin FIT DH7 variable-speed heat pump and matched indoor air handler, using R-32 refrigerant, City of Glendale permitting, Title 24 documentation, and Glendale Water & Power rebate paperwork coordination.
A quiet variable-speed heat pump upgrade for a Glendale home
A residential home in the 91203 area of Glendale, near the foothills above downtown, had been running on its original 1981 split system for more than four decades. The equipment had become loud, inefficient, and unreliable.
The homeowner wanted a replacement that would fade into the background of a quiet, work-from-home environment. Cold Cloud Mechanical replaced the full system with a Daikin FIT DH7 variable-speed heat pump and a matched indoor air handler running on R-32 refrigerant.
Why replacing the original 1981 system was the practical choice
The original split system had reached the end of its service life. Single-stage equipment from that era cycles hard, runs loud, and struggles to maintain even temperatures across a full day.
The old equipment was loud and unreliable
Constant on-off cycling and outdoor compressor noise had become a daily distraction for a homeowner who works from home and needed quieter comfort.
The system needed to move beyond obsolete technology
Refrigerant, controls, efficiency standards, and equipment design have all moved forward since 1981, making patch repairs a poor long-term investment.
What Cold Cloud Mechanical completed
The project included removal and recycling of the original split system, Daikin FIT DH7 installation, matched air handler installation, condensate drain corrections, thermostat setup, permitting, Title 24 documentation, and rebate paperwork support.

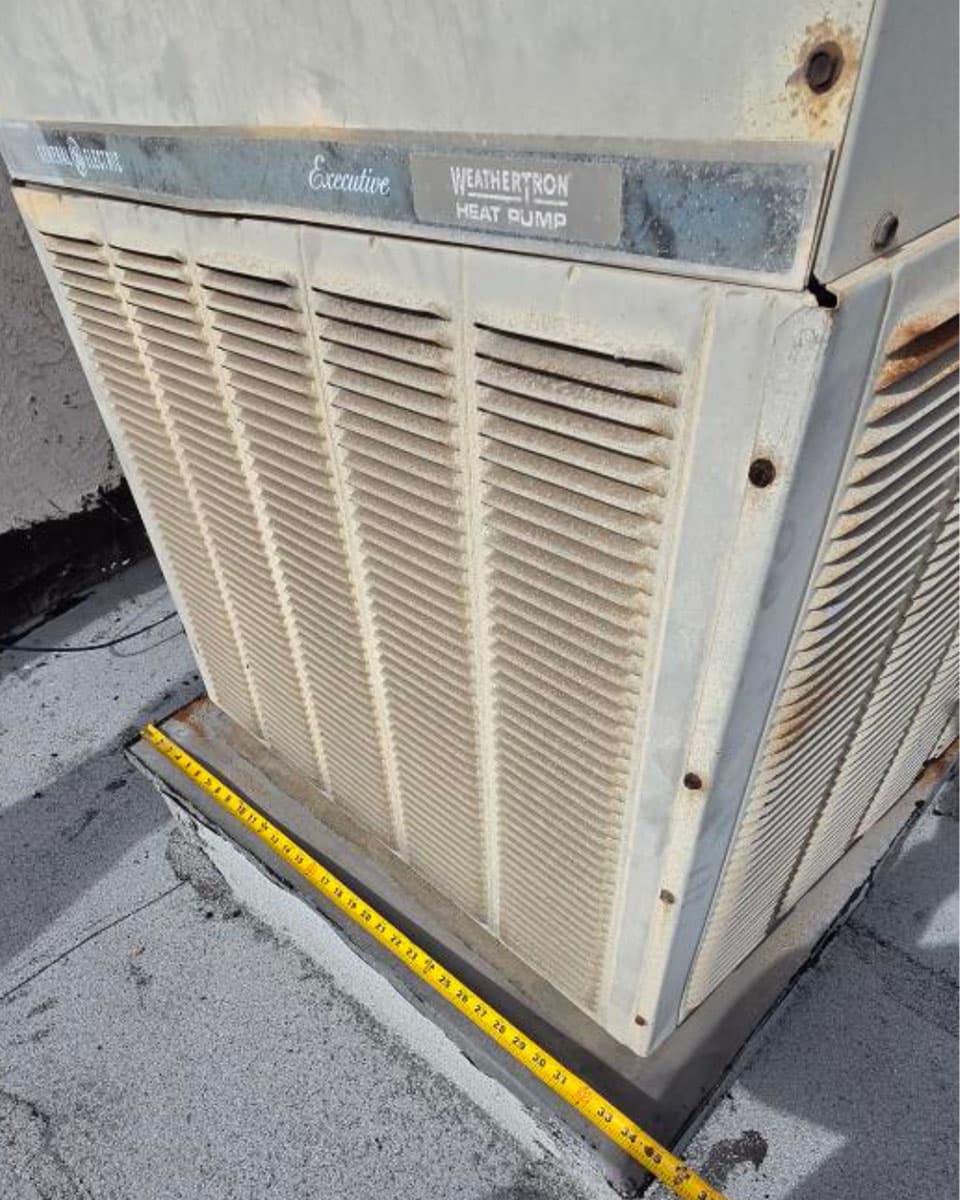

- Removed and recycled the original split system, including outdoor condenser, indoor furnace, and connected components.

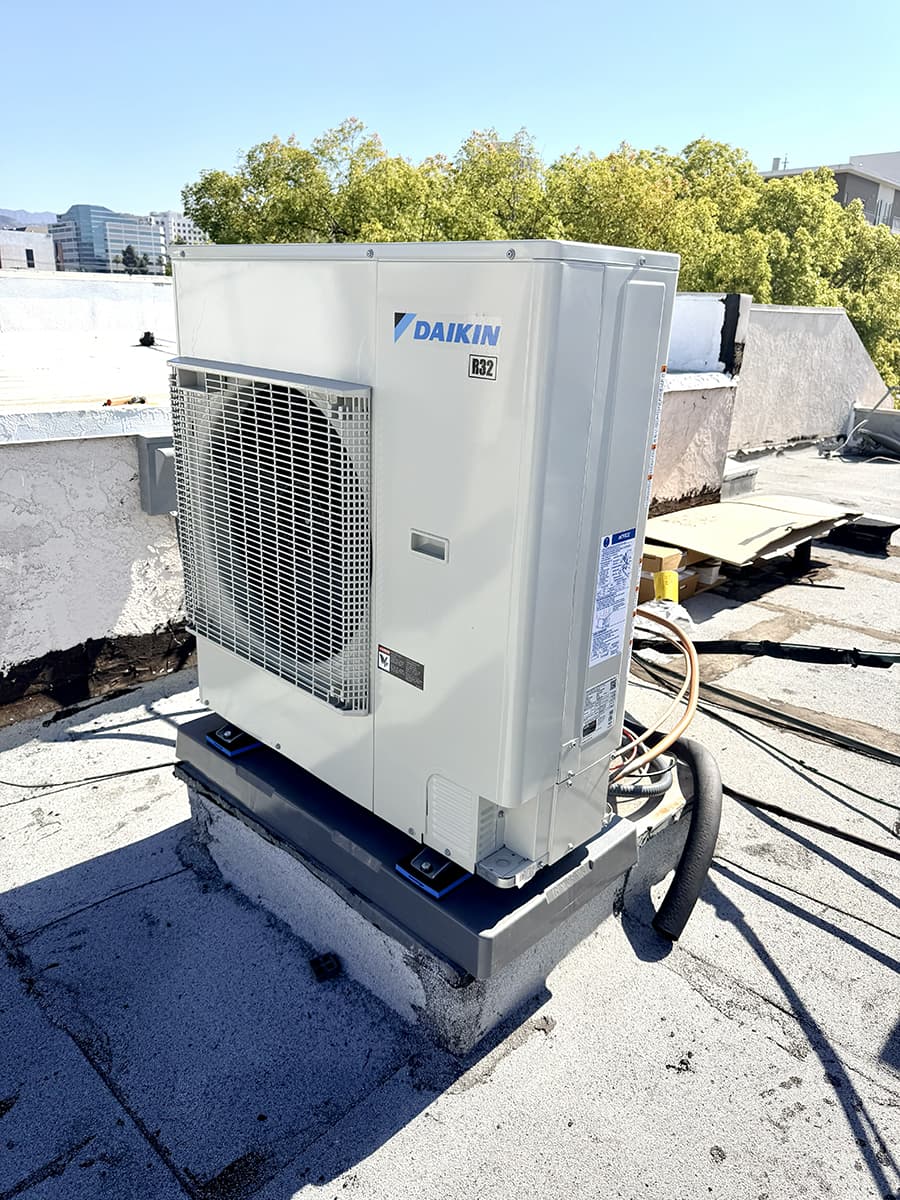

- Installed a Daikin FIT DH7 variable-speed heat pump outdoor unit.

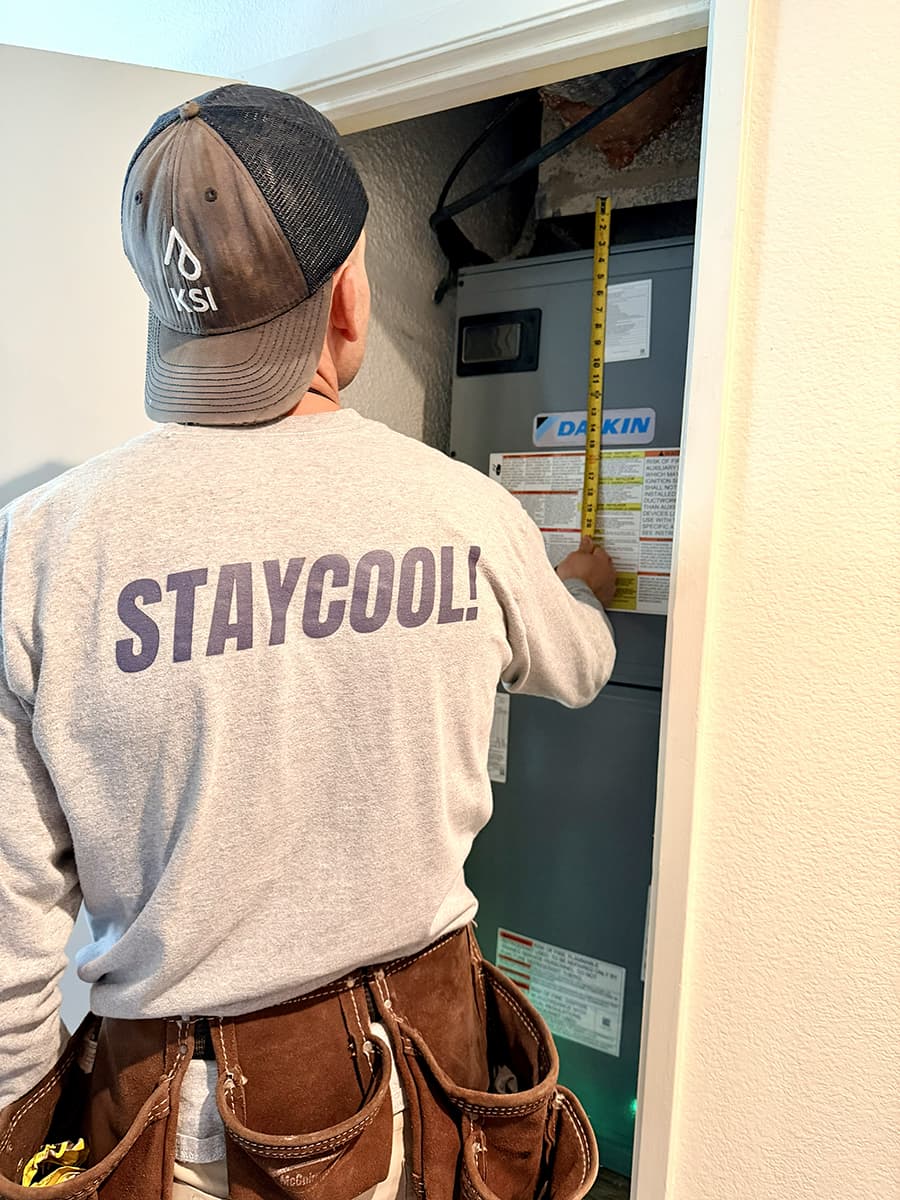

- Installed a matched Daikin indoor air handler.
- Set the air handler on a 115V circuit with existing infrastructure used where serviceable.
- Installed a fused disconnect with liquidtight whip at the outdoor unit.

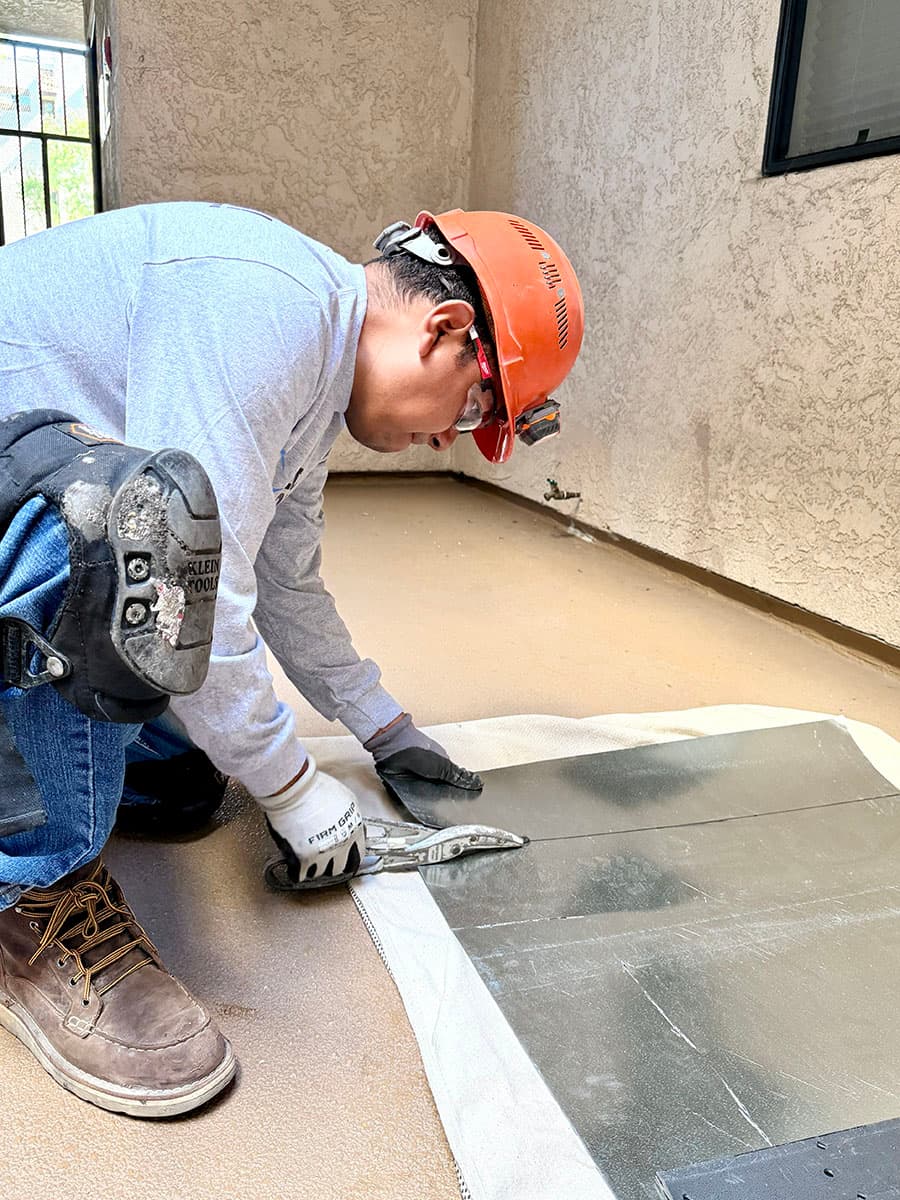

- Repaired and rerouted the PVC condensate drain line.
- Installed a float switch on the secondary overflow pan to protect against future drain blockages.
- Installed and configured a Daikin One Touch thermostat.
- Pulled the City of Glendale mechanical permit and coordinated inspection.
- Completed Title 24 compliance documentation.
- Prepared Glendale Water & Power rebate paperwork for submission after final inspection.

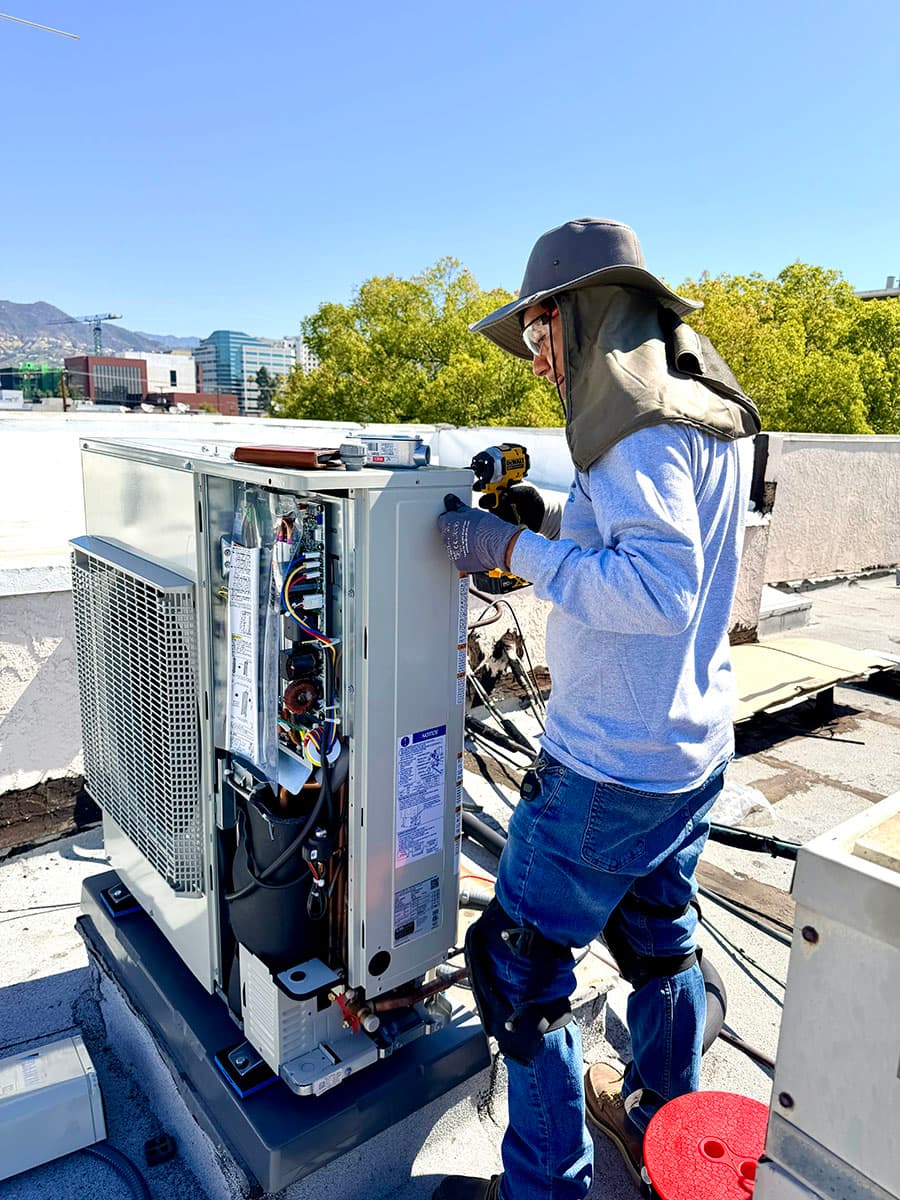

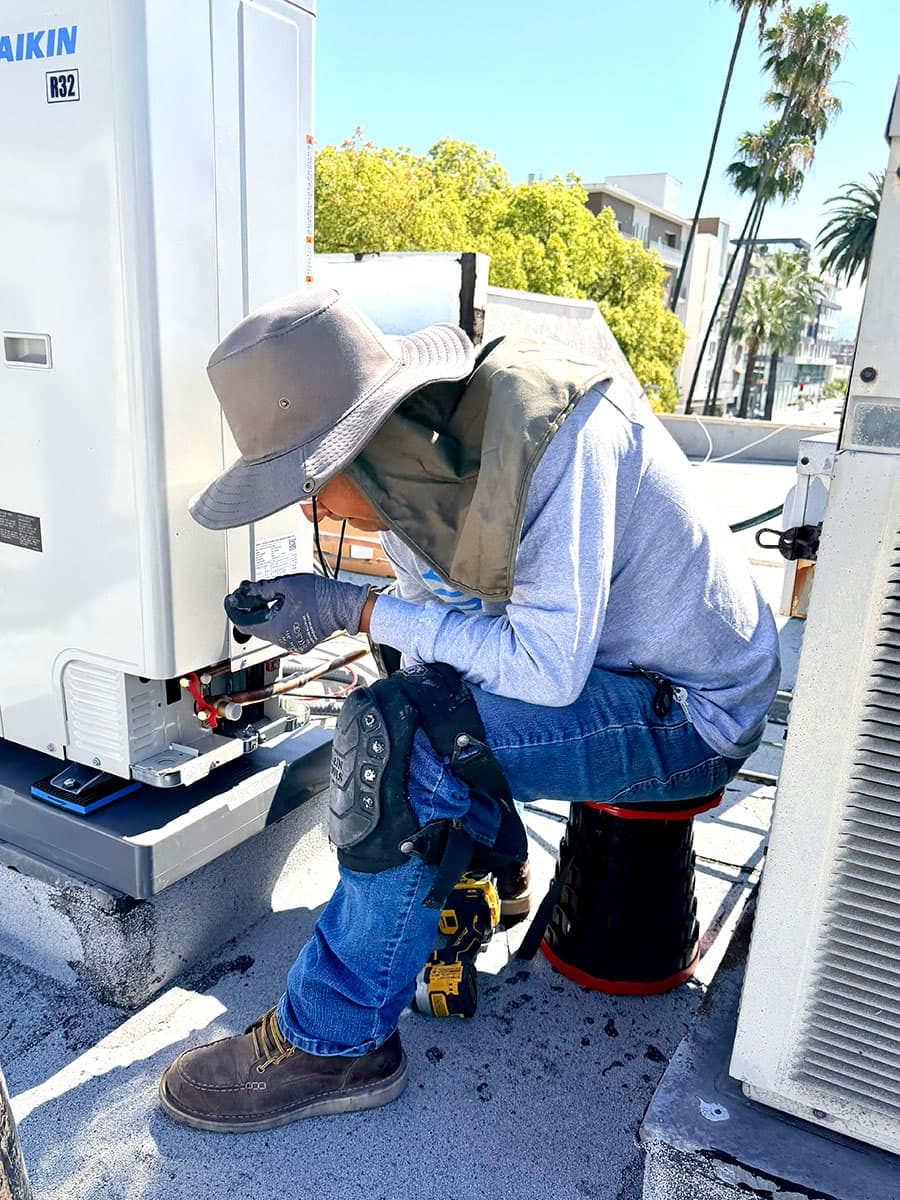

- Completed rooftop startup, service panel checks, and commissioning.
Daikin FIT DH7 variable-speed heat pump with matched air handler
The replacement system was selected for a low sound profile, tight temperature control, and efficient performance across Glendale’s mild winters and hot, dry summers.

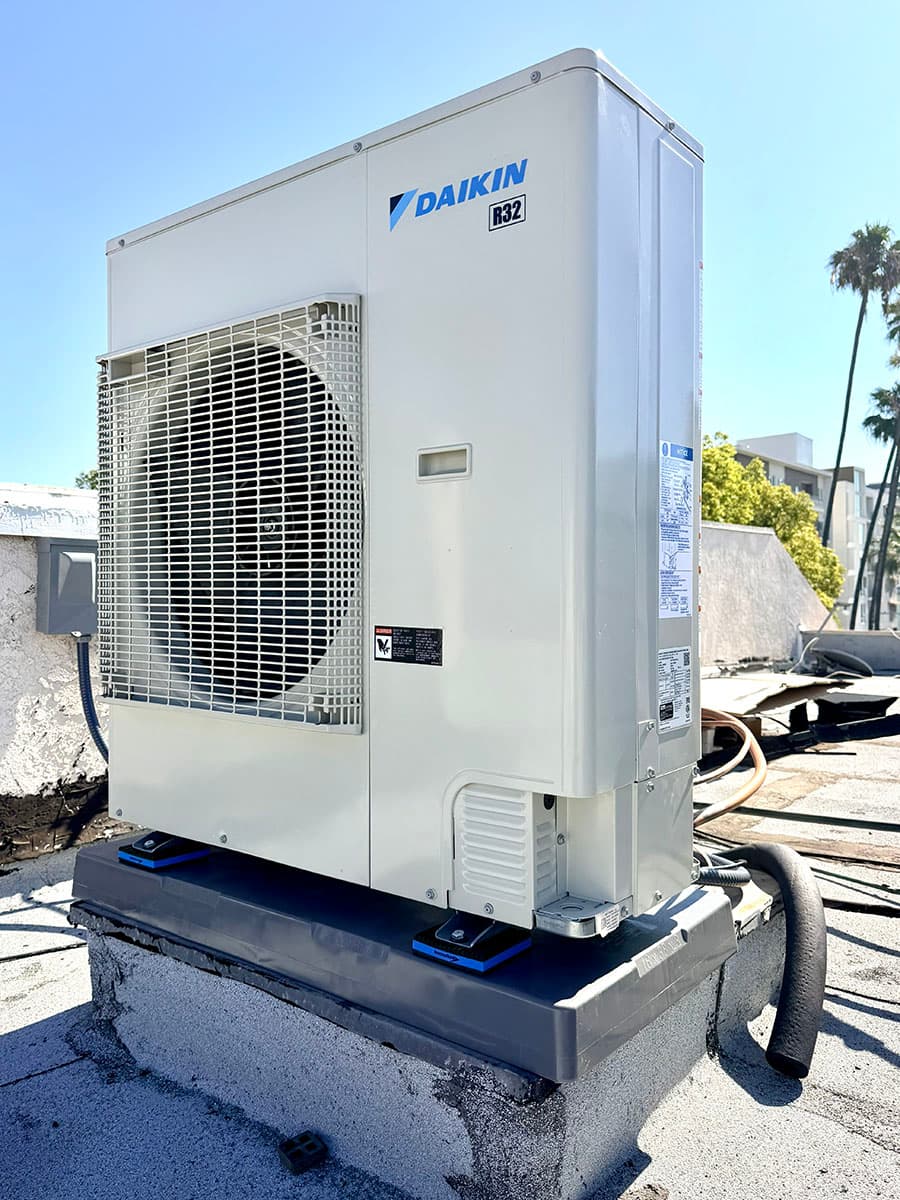

Daikin FIT DH7 DH7VSA3610A
3-ton variable-speed heat pump using R-32 refrigerant.

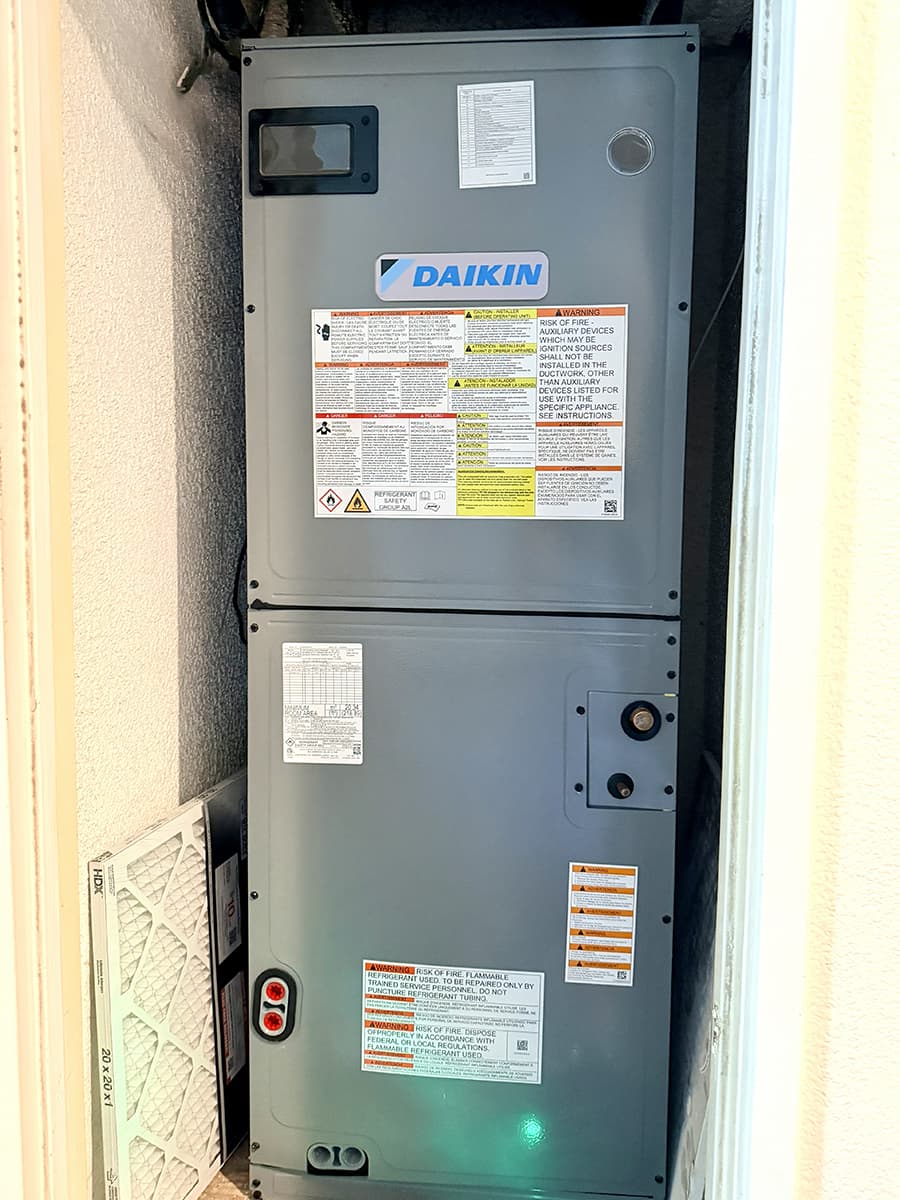

Daikin DFVE42CP0300A
Matched Daikin air handler with 3.5-ton nominal cabinet and 115V power.
Daikin One Touch thermostat
Daikin One Touch thermostat, model DTST-TOU-A, installed and configured.
Float switch and fused disconnect
Float switch on secondary overflow pan, fused disconnect at outdoor unit, and liquidtight whip installed.
A variable-speed heat pump changes how the home feels and sounds
A 1981 single-stage system and a modern variable-speed heat pump are not the same category of equipment. The Daikin FIT DH7 modulates compressor output to match actual load, which means longer, gentler run cycles and quieter operation.
For a home where focus and quiet matter during working hours, lower outdoor noise and smoother temperature control were central to the replacement. R-32 refrigerant, Title 24 documentation, and a permitted installation also help position the home for the next 15 to 20 years of California energy standards.
Before, during, and after the Glendale 91203 Daikin FIT DH7 replacement

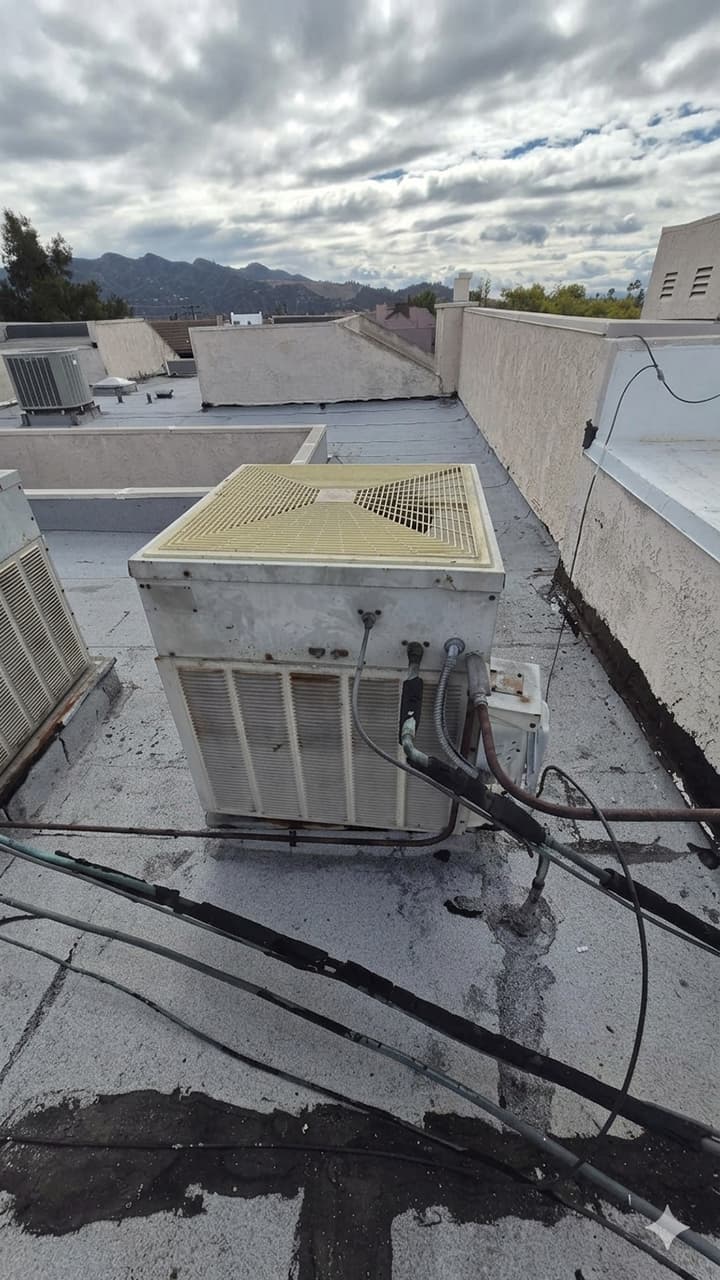

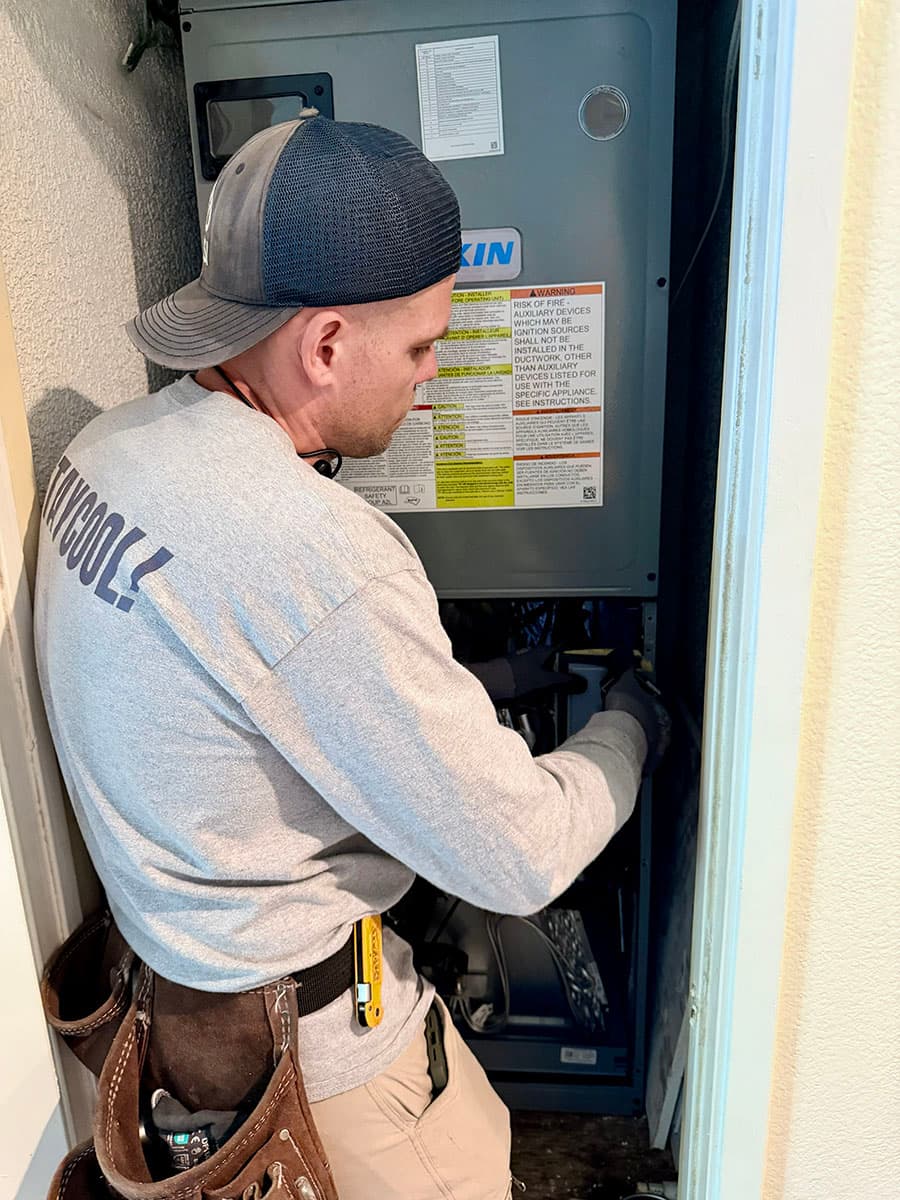

The photos below show the old 1981 split system, old condenser, new Daikin rooftop heat pump, matched air handler, condensate preparation, wiring, service panel commissioning, and final before-and-after comparison.
Quieter comfort, modern refrigerant, and a documented installation
This project replaced a loud, inefficient legacy split system with a Daikin FIT DH7 variable-speed heat pump designed for quieter operation, smoother comfort, and long-term performance under current California documentation requirements.
Lower sound profile
The Daikin FIT DH7 was selected to reduce the harsh cycling and compressor noise associated with the original single-stage equipment.
Variable-speed comfort
The system modulates output to match actual load, supporting longer run cycles and tighter indoor temperature control.
Permit and rebate support
The project included City of Glendale permitting, Title 24 documentation, and Glendale Water & Power rebate paperwork preparation.
